Inner Diameter of Camshaft Bracket

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Tighten camshaft bracket bolts to specified torque. Refer to "INSTALLATION ".
  2. Using inside micrometer, measure inner diameter "A" of camshaft bearing.
    1. Standard inner diameter No. 1 : 26.000 - 26.021 mm (1.0236 - 1.0244 in)
    2. Standard inner diameter No. 2, 3, 4 : 23.500 - 23.521 mm (0.9252 - 0.9260 in)

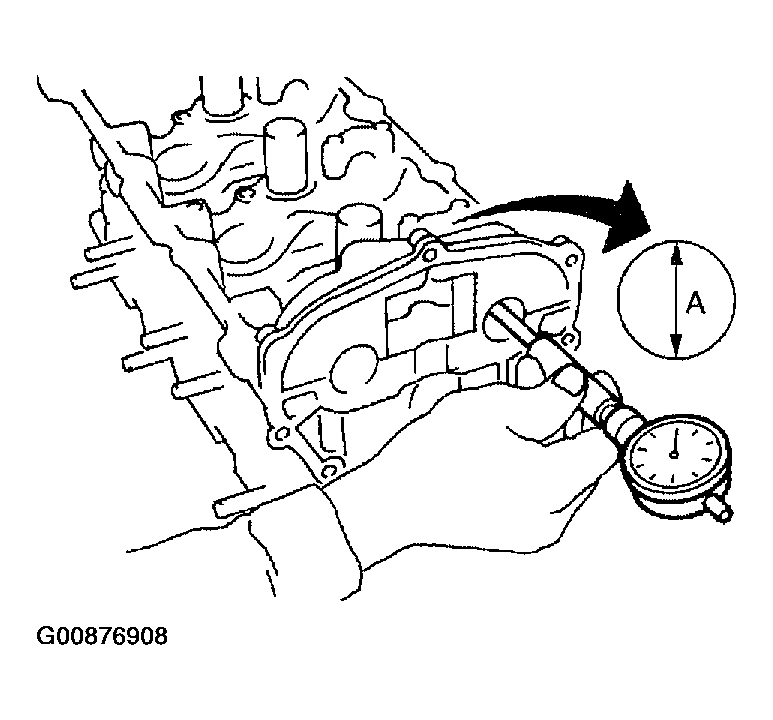

    Fig 1: Measure Inner Diameter of Camshaft Bracket
    G00876908Courtesy of NISSAN MOTOR CO., U.S.A.
