Camshaft End Play

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Install the camshaft in the cylinder head. Refer to "INSTALLATION ".
Install dial gauge in thrust direction on front end of camshaft. Measure end play when camshaft is moved forward/backward (in direction to axis) as shown.
1. Standard : 0.115 - 0.188 mm (0.0045 - 0.0074 in)
2. Limit : 0.24 mm (0.0094 in)

If out of the specified range, replace with new camshaft and measure again.
If out of the specified range again, replace with new cylinder head.

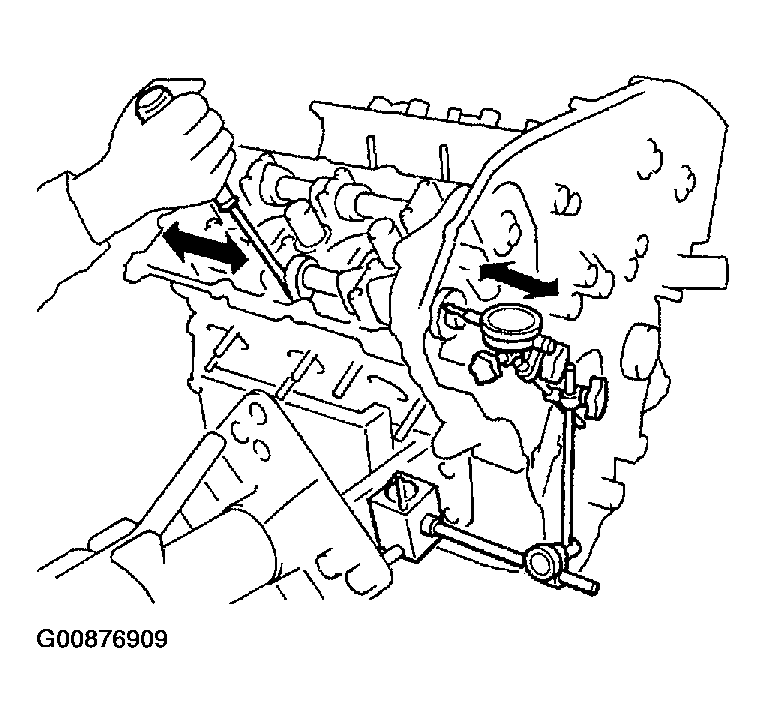

Fig 1: Measuring Camshaft End Play

Courtesy of NISSAN MOTOR CO., U.S.A.
