Camshaft Cam Lobe Height

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Measure camshaft cam lobe height as shown. Refer to "CAMSHAFT AND CAMSHAFT BEARING ".
If wear has reduced the lobe height below specifications, replace the camshaft.

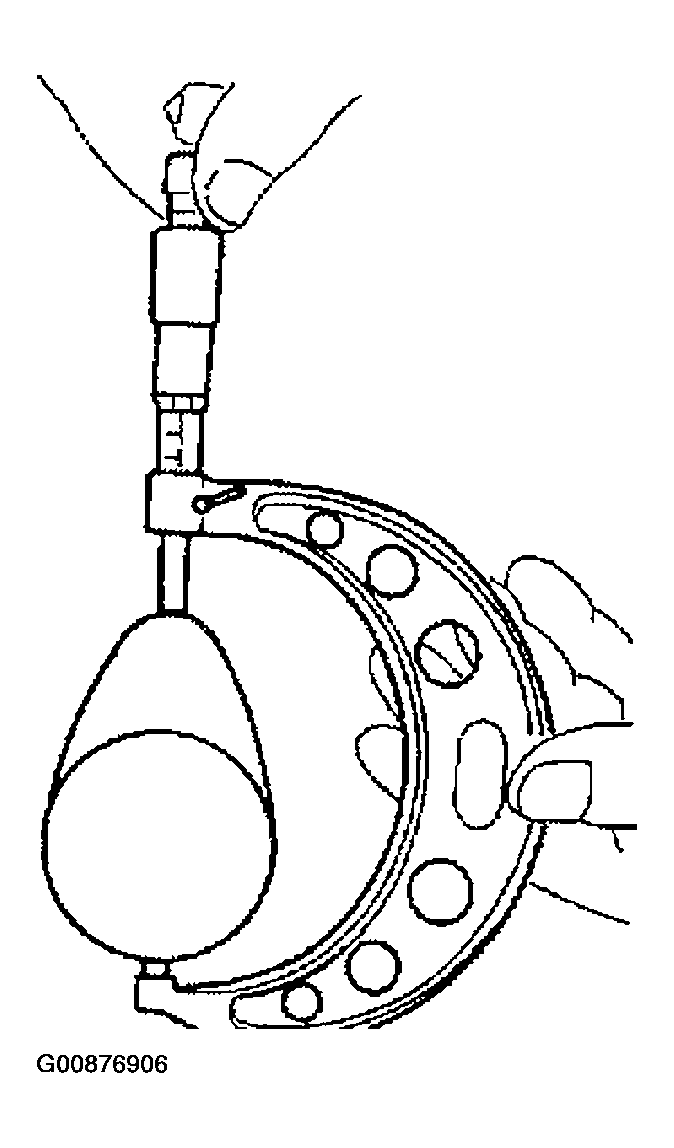

Fig 1: Measuring Camshaft Cam Lobe Height

Courtesy of NISSAN MOTOR CO., U.S.A.
