Inspection After Removal

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check for badly rusted or corroded water pump body assembly.
  2. Check for rough operation due to excessive end play.

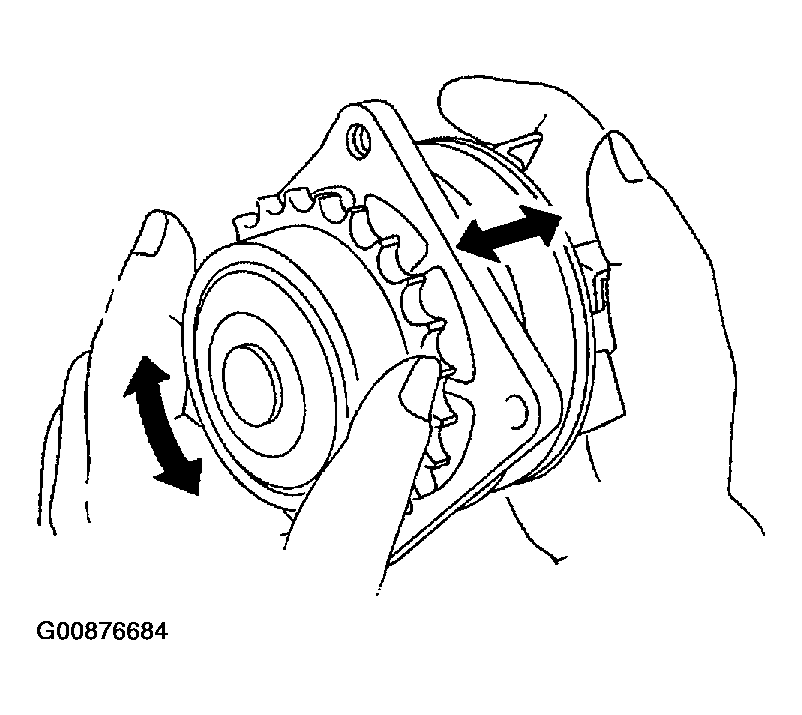

    Fig 1: inspection After Removal
    G00876684Courtesy of NISSAN MOTOR CO., U.S.A.
