Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove undercover.
  2. Drain coolant from radiator. Refer to CHANGING ENGINE COOLANT .
    CAUTION: Perform when engine is cool.
  3. Remove drive belts. Refer to "Removal and Installation ".
  4. Remove water drain plug on water pump side of the engine.
  5. Remove right-hand side engine cover.
  6. Remove coolant reservoir. Refer to "Figure"
  7. Remove IPDM E/R mounting bolts and position aside. Refer to "Removal and Installation of IPDM E/R ".
  8. Disconnect lower radiator hose.
  9. Disconnect oil cooler line.
  10. Remove engine coolant inlet and thermostat assembly.
    • Do not disassemble engine coolant inlet and thermostat assembly. Replace them as a unit, if necessary.

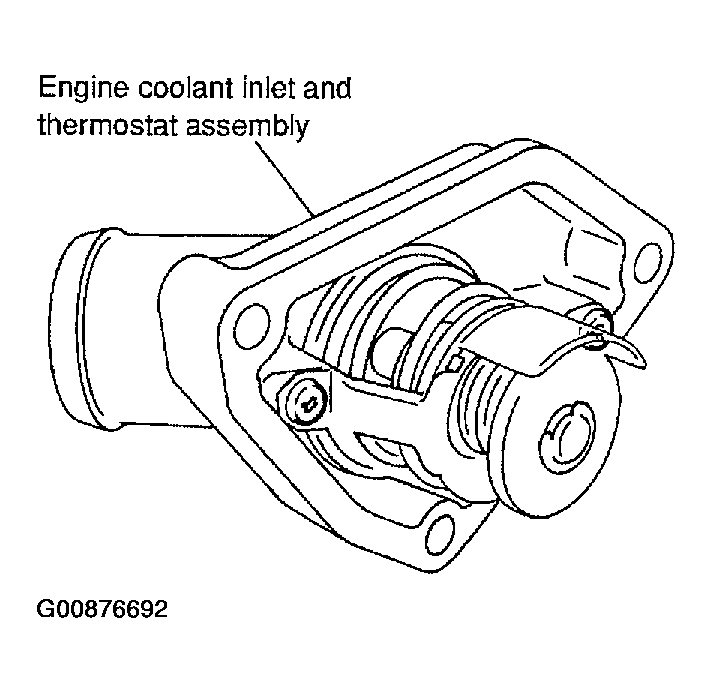

    Fig 1: Engine Coolant Inlet And Thermostat Assembly
    G00876692Courtesy of NISSAN MOTOR CO., U.S.A.
