Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the undercover.
  2. Drain the coolant from the radiator. Refer to CHANGING ENGINE COOLANT .
    CAUTION: Perform when engine is cold.
  3. Remove fresh air duct. Refer to "Removal and Installation ".
  4. Remove IPDM E/R mounting bolts and position aside. Refer to "Removal and Installation of IPDM E/R ".
  5. Disconnect radiator upper and lower hoses.
  6. Remove the A/T fluid cooler hoses, if equipped.
    • Plug hoses to avoid leakage of A/T fluid.
  7. Disconnect the reservoir tank hose.
  8. Remove the radiator upper clips by pulling the tabs outside to release the lock, as shown.
    CAUTION: To prevent damage, do not pull lock tabs excessively.
  9. Disconnect fan electrical connectors.
  10. Remove the radiator and radiator fan assembly.
    CAUTION: Do not damage or scratch air conditioner condenser and radiator core when removing.

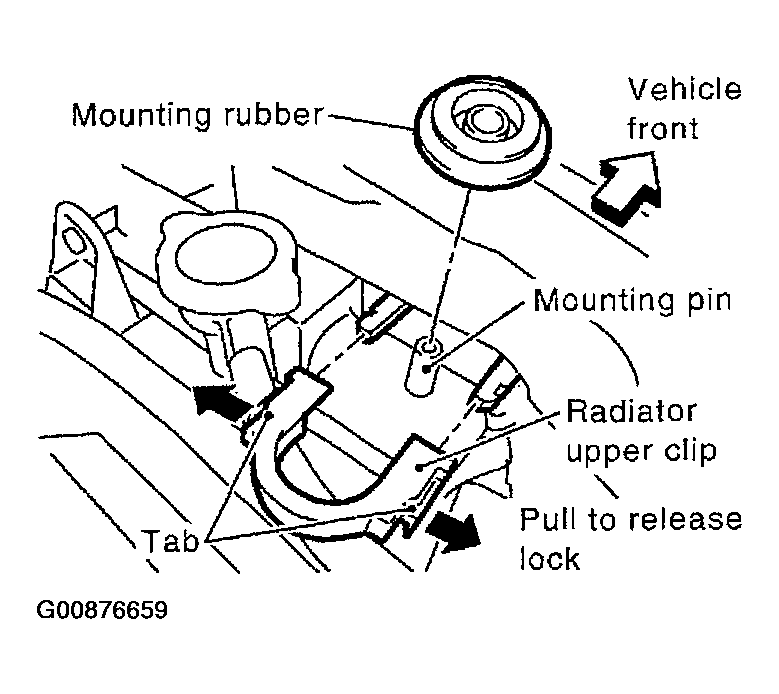

    Fig 1: Remove The Radiator Upper Clips By Pulling The Tabs Outside To Release The Lock
    G00876659Courtesy of NISSAN MOTOR CO., U.S.A.
