With CONSULT-II
WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
The emission related diagnostic information in the ECM can be erased by selecting "ERASE" in the "SELF-DIAG RESULTS" mode with CONSULT-II.
If DTCs are displayed for both ECM and TCM (Transmission control module), they need to be erased individually from the ECM and TCM (Transmission control module).
NOTE:
If the DTC is not for AT related items (see
"INDEX FOR DTC "), skip steps 2 through 4.

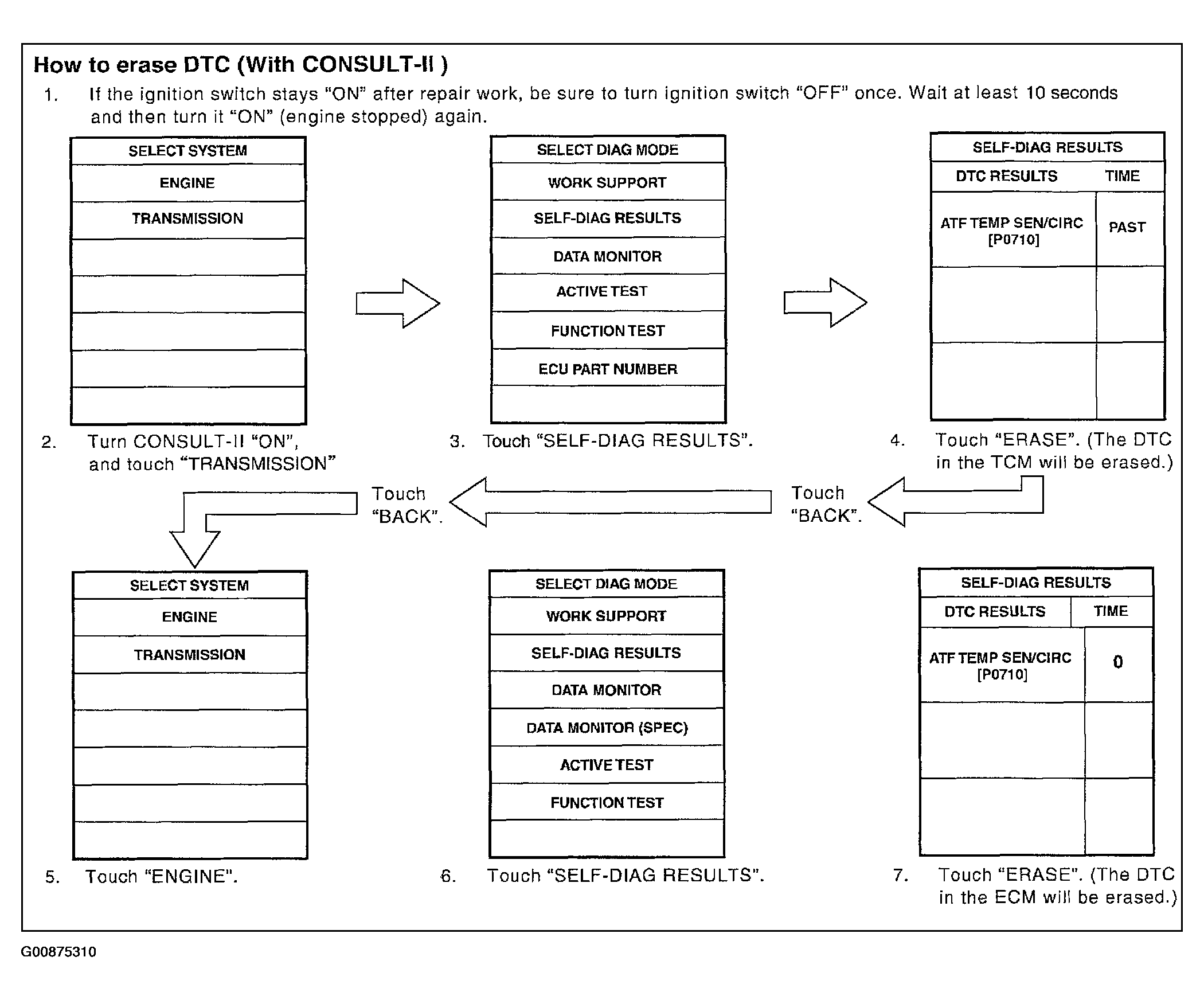

- If the ignition switch stays ON after repair work, be sure to turn ignition switch OFF once. Wait at least 10 seconds and then turn it ON (engine stopped) again.
- Turn CONSULT-II ON and touch "AT" (4-speed A/T models) or "TRANSMISSIION" (5-speed A/T models).
- Touch "SELF-DIAG RESULTS".
- Touch "ERASE". [The DTC in the TCM (Transmission control module) will be erased.] Then touch "BACK" twice.
- Touch "ENGINE".
- Touch "SELF-DIAG RESULTS".
- Touch "ERASE". (The DTC in the ECM will be erased.)
