WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

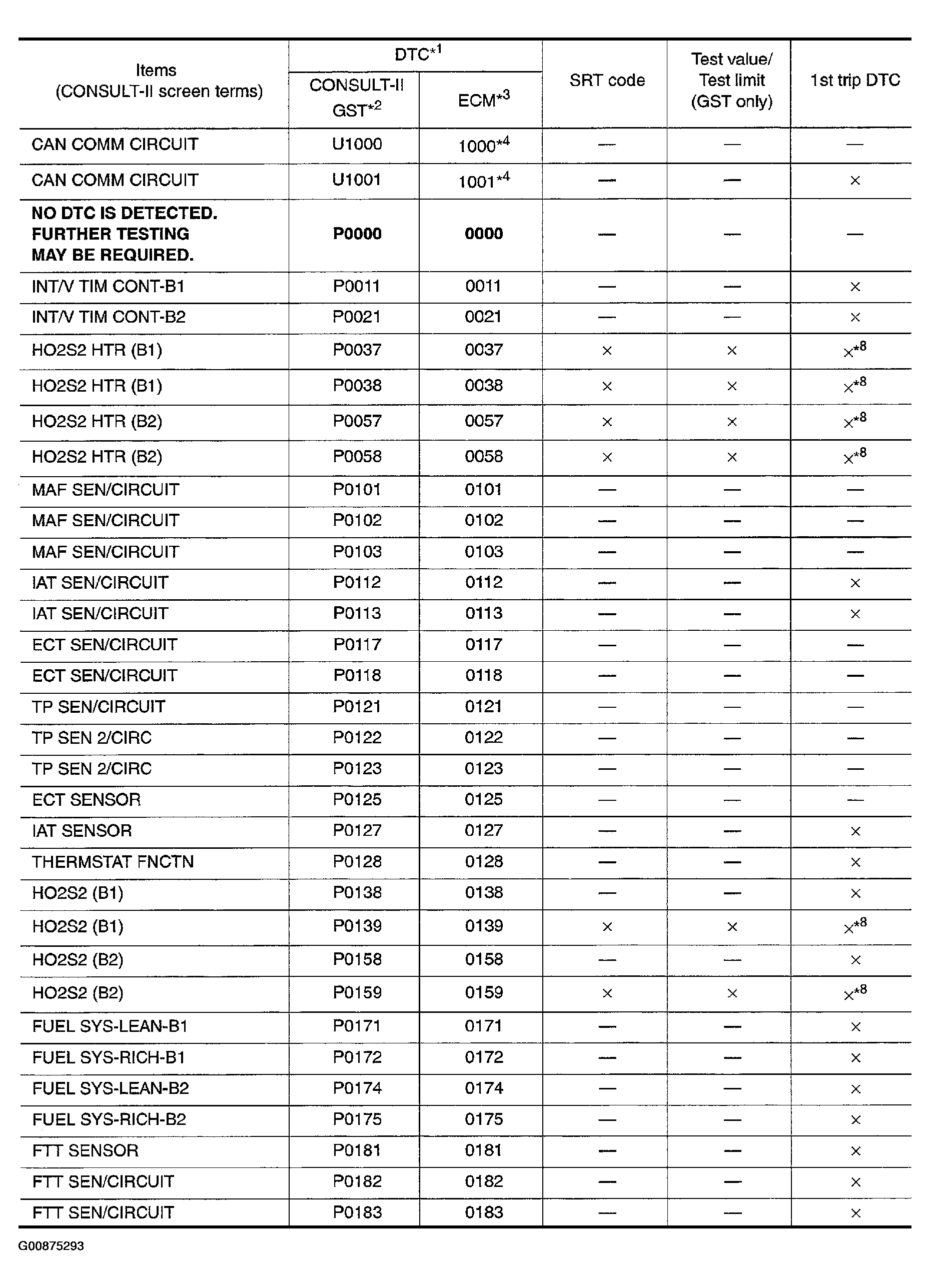

Fig 1: Emission-Related Diagnostic Information Items (1 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

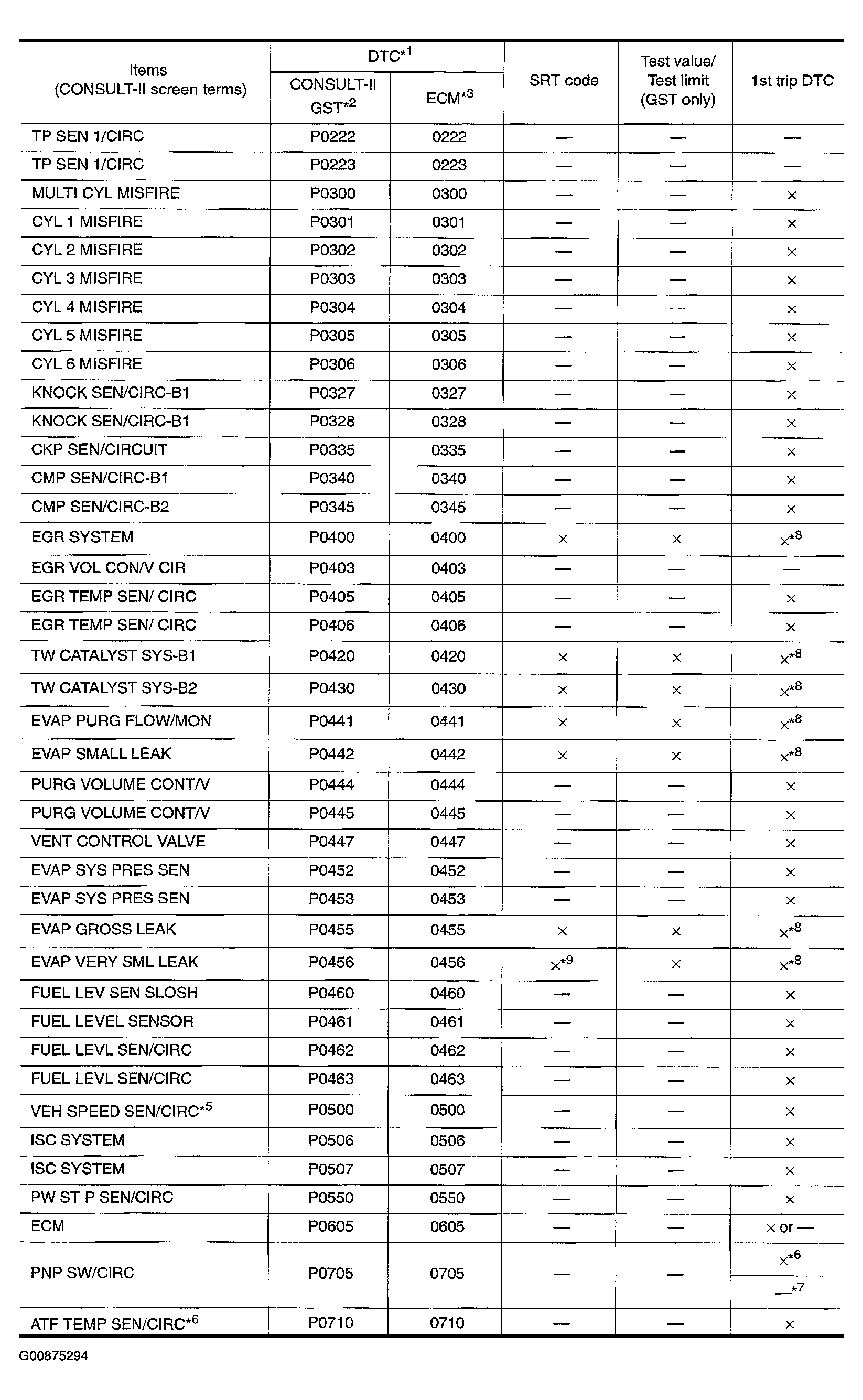

Fig 2: Emission-Related Diagnostic Information Items (2 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

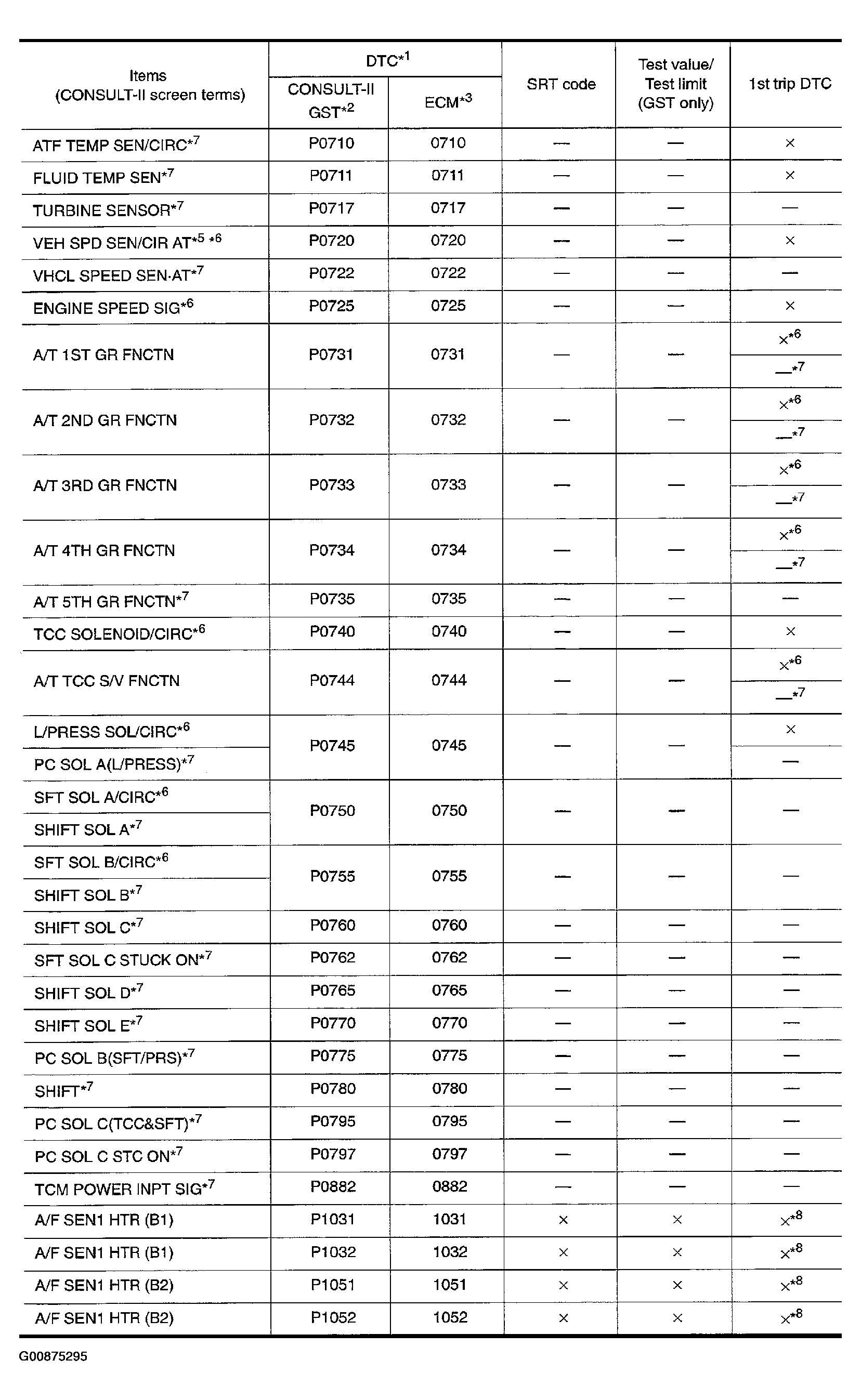

Fig 3: Emission-Related Diagnostic Information Items (3 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

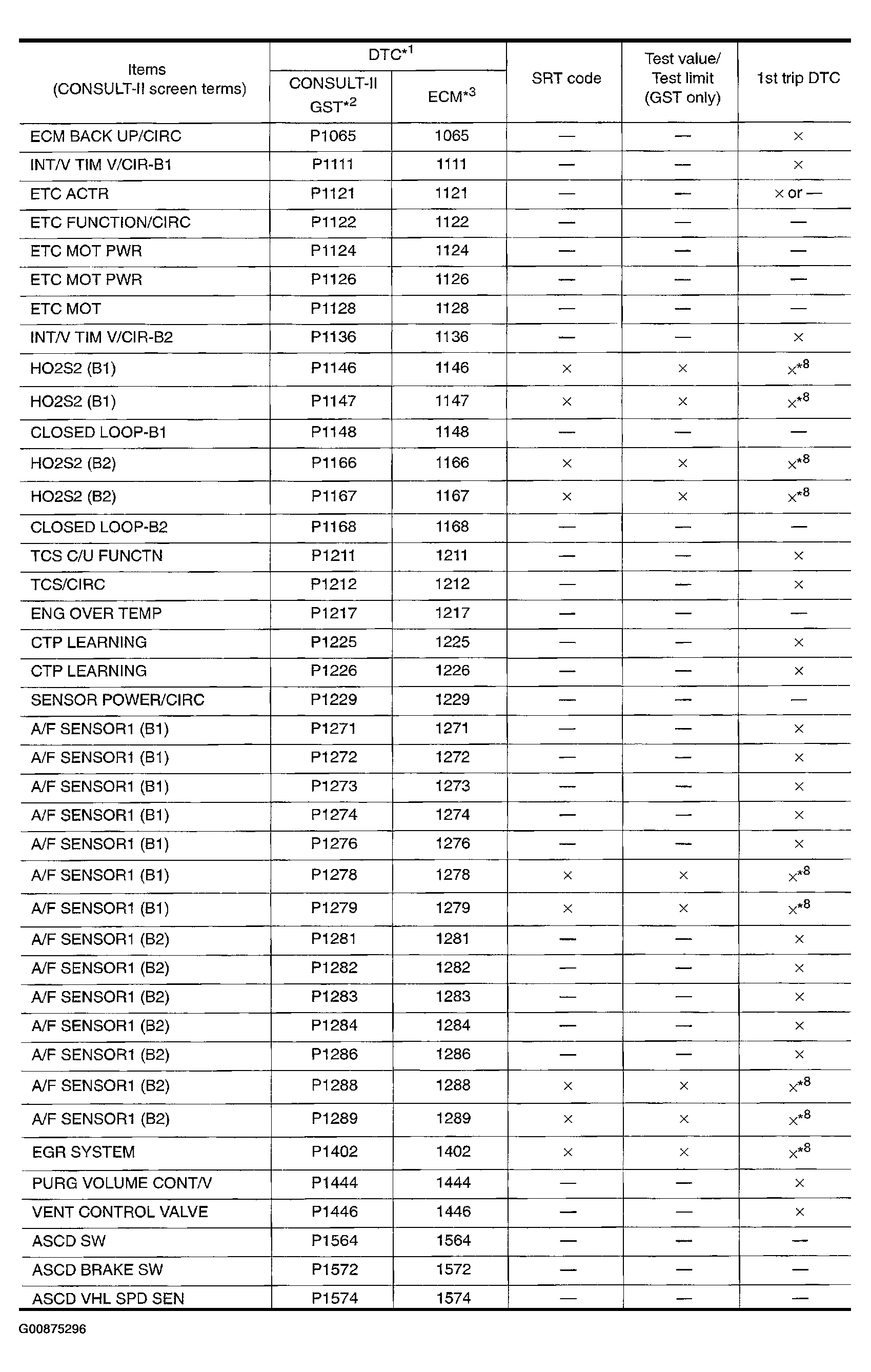

Fig 4: Emission-Related Diagnostic Information Items (4 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

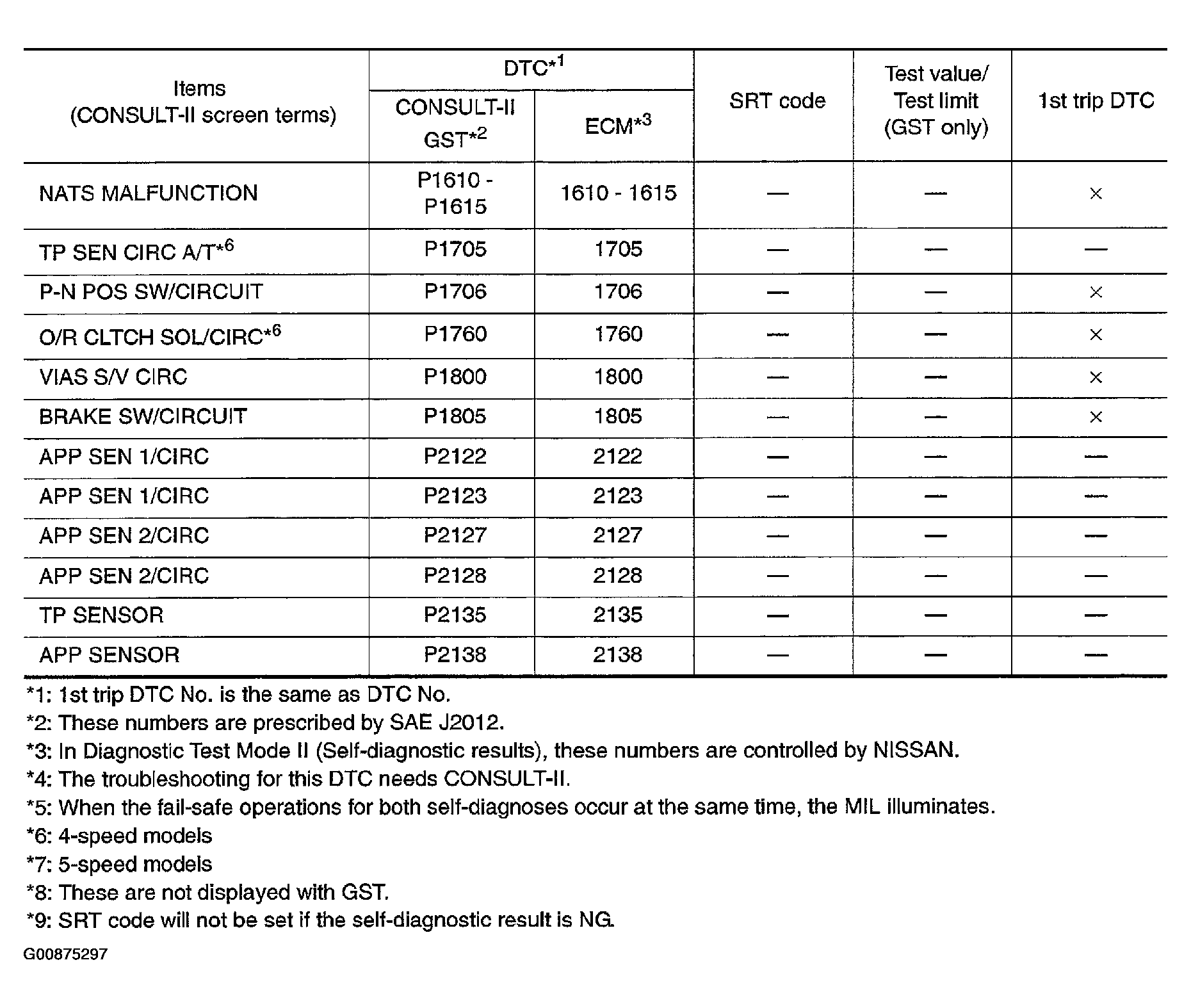

Fig 5: Emission-Related Diagnostic Information Items (5 Of 5)
