PCV Valve Ventilation Hose

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check hoses and hose connections for leaks.
  2. Disconnect all hoses and clean with compressed air. If any hose cannot be freed of obstructions, replace.

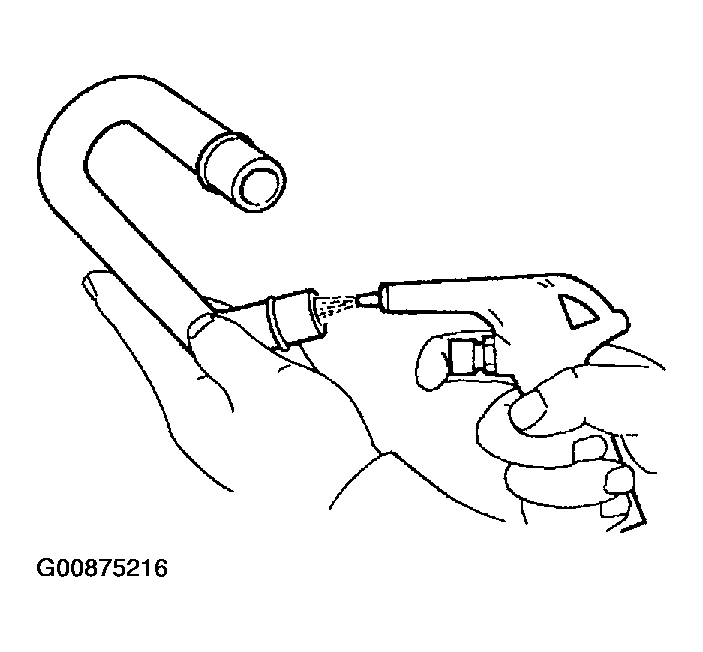

Fig 1: Checking PCV Valve Ventilation Hose
G00875216Courtesy of NISSAN MOTOR CO., U.S.A.
