5. Check Ignition Coil Power Supply Circuit-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF.
Disconnect condenser harness connector.
Turn ignition switch ON.

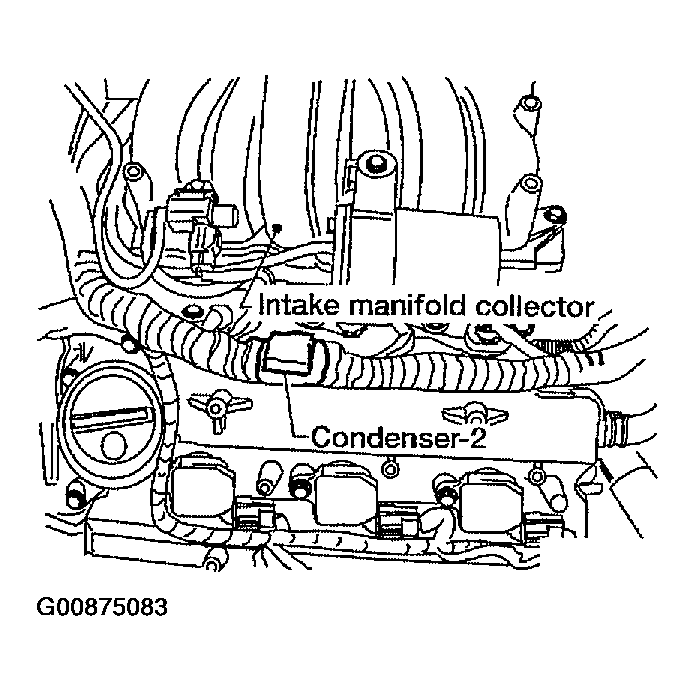

Fig 1: Disconnect Condenser Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Check voltage between condenser terminal 1 and ground with CONSULT-II or tester.
1. Voltage: Battery voltage

OK or NG

OK : GO TO 8 .
NG : GO TO 6.

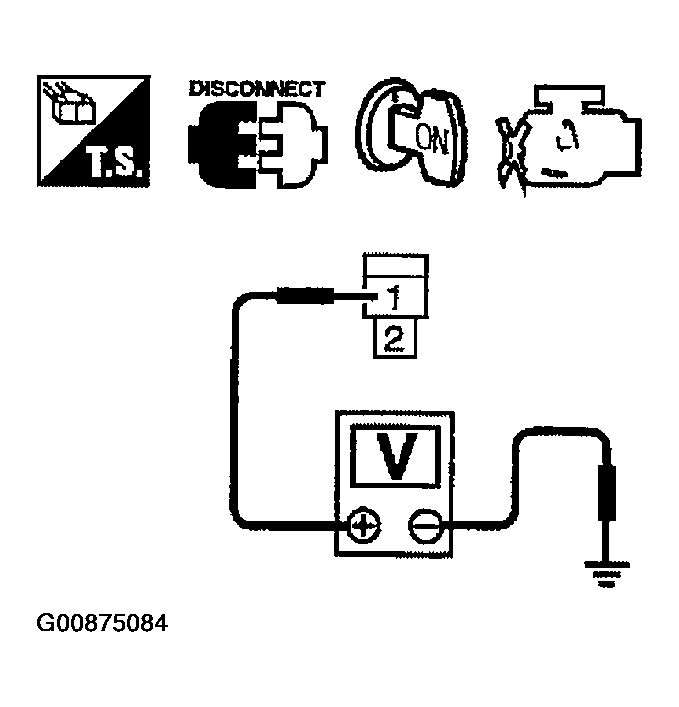

Fig 2: Check Ignition Coil Power Supply Circuit-II

Courtesy of NISSAN MOTOR CO., U.S.A.
