10. Check Ignition Coil Power Supply Circuit-V

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF.
Reconnect all harness connectors disconnected.
Disconnect ignition coil harness connector.

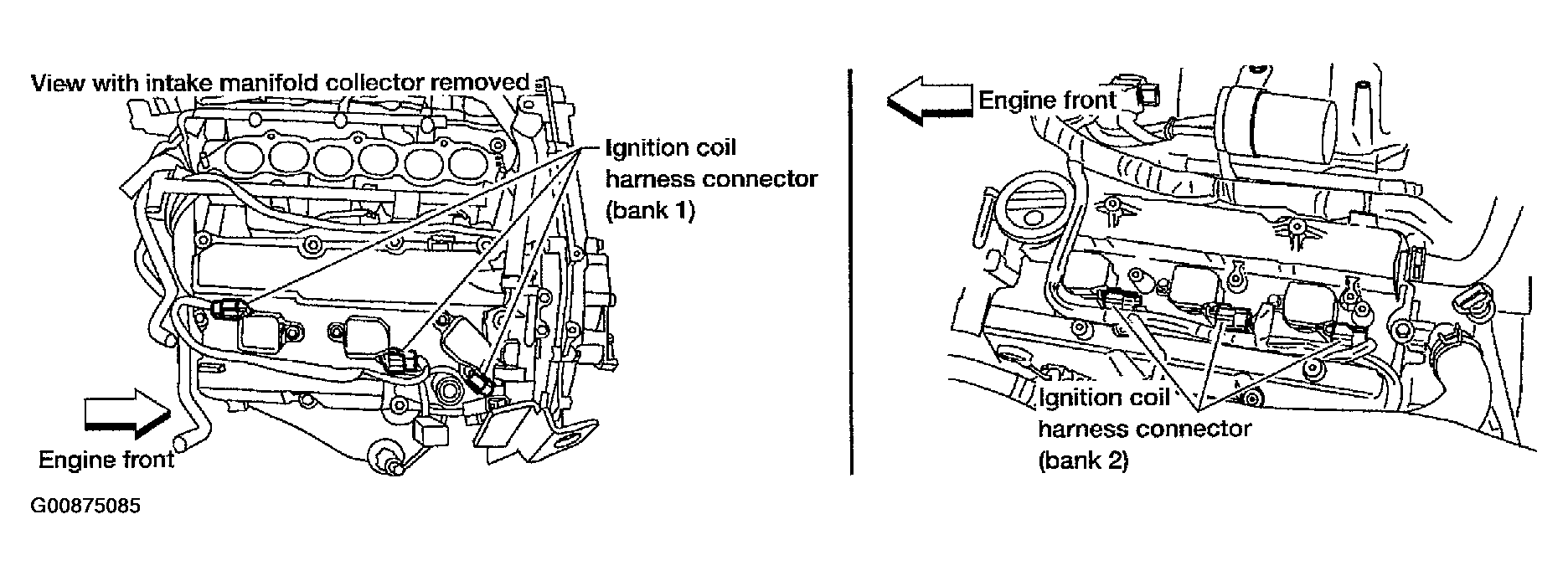

Fig 1: Disconnect Ignition Coil Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Check voltage between ignition coil terminal 3 and ground with CONSULT-II or tester.
1. Voltage: Battery voltage

OK or NG

OK : GO TO 12 .
NG : GO TO 11.

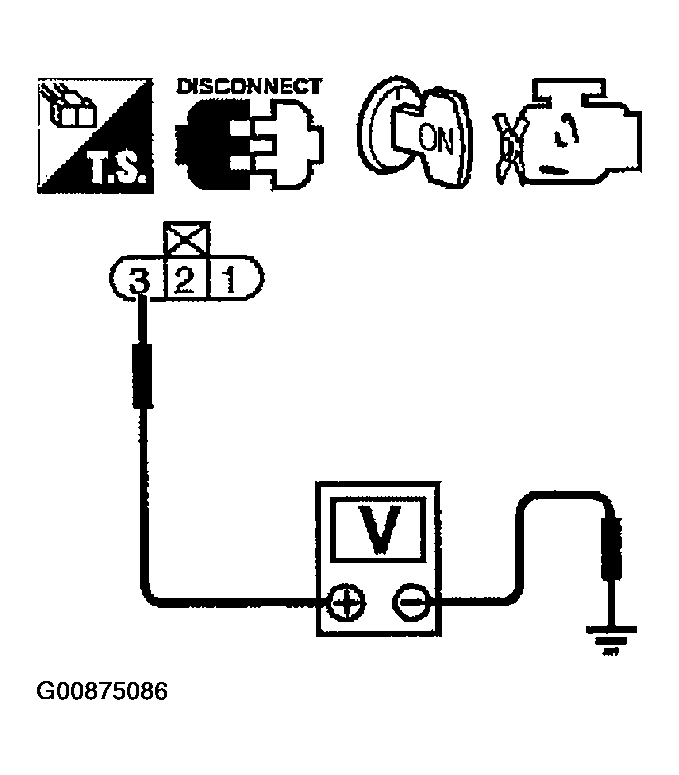

Fig 2: Check Ignition Coil Power Supply Circuit-V

Courtesy of NISSAN MOTOR CO., U.S.A.
