EVAP Canister

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Tighten EVAP canister as shown in Fig 1.

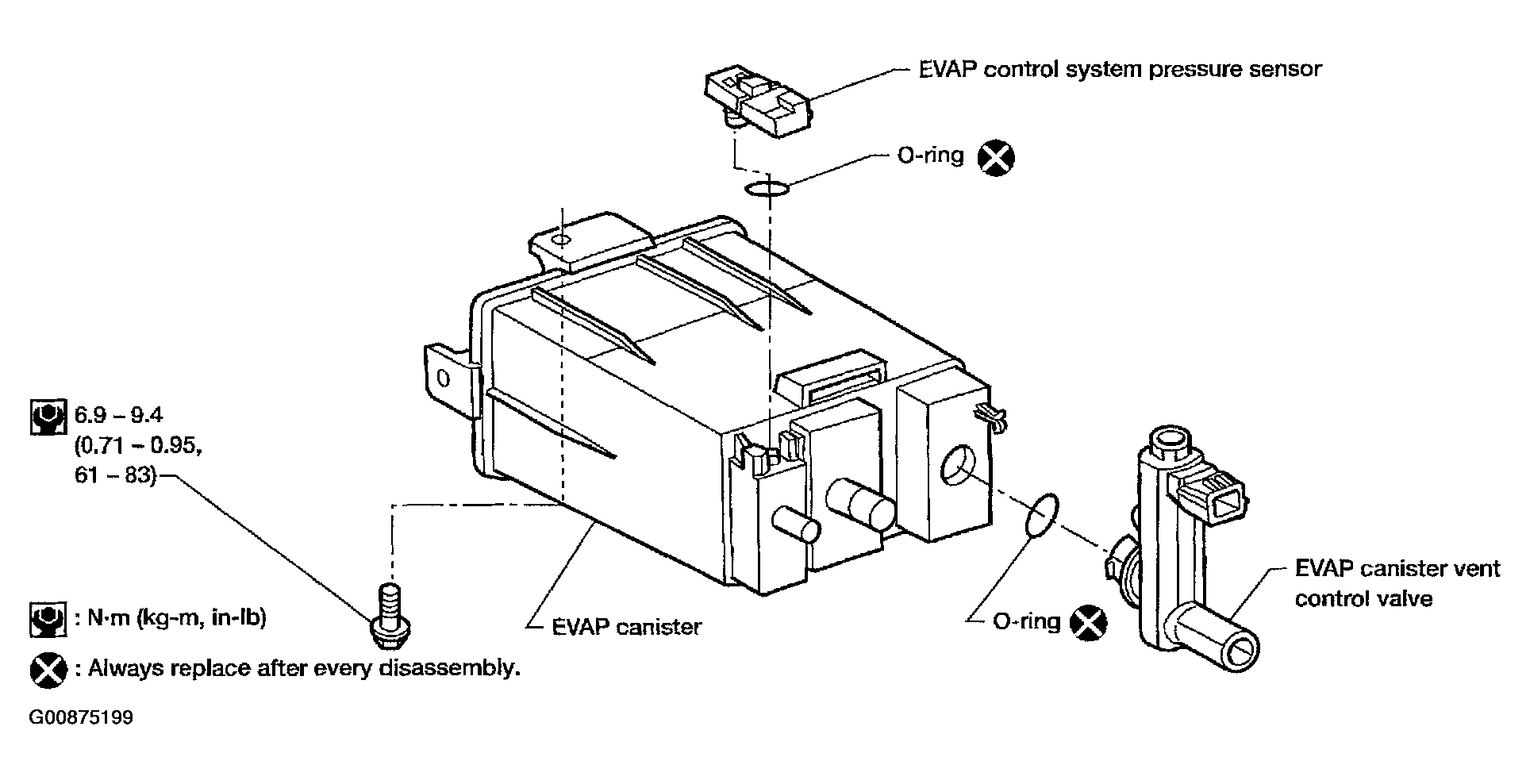

Fig 1: Tightening EVAP Canister
G00875199Courtesy of NISSAN MOTOR CO., U.S.A.
