4. Check ASCD Clutch Switch Power Supply Circuit

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF.
Disconnect ASCD clutch switch harness connector.
Turn ignition switch ON.

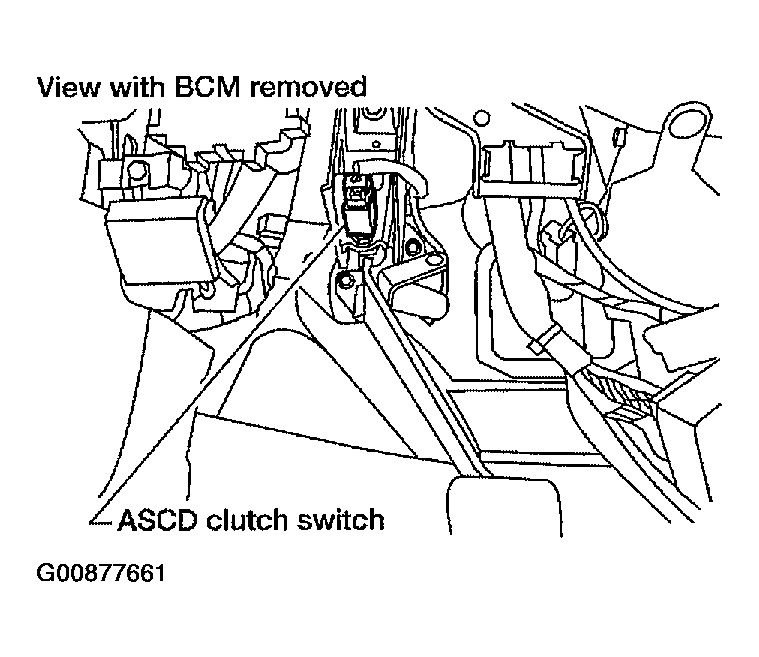

Fig 1: Locating ASCD Clutch Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
Check voltage between ASCD clutch switch terminal 1 and ground with CONSULT-II or tester.
1. Voltage: Battery voltage

OK or NG

OK: GO TO 6 .
NG: GO TO 5.

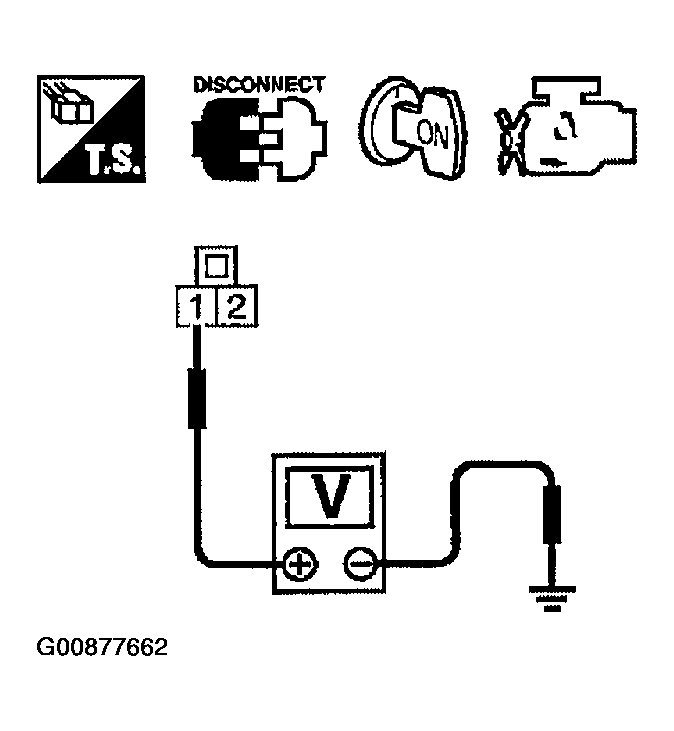

Fig 2: Check Voltage

Courtesy of NISSAN MOTOR CO., U.S.A.
