Without CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Remove EVAP canister vent control valve from EVAP canister.
Check portion B of EVAP canister vent control valve for being rusted.

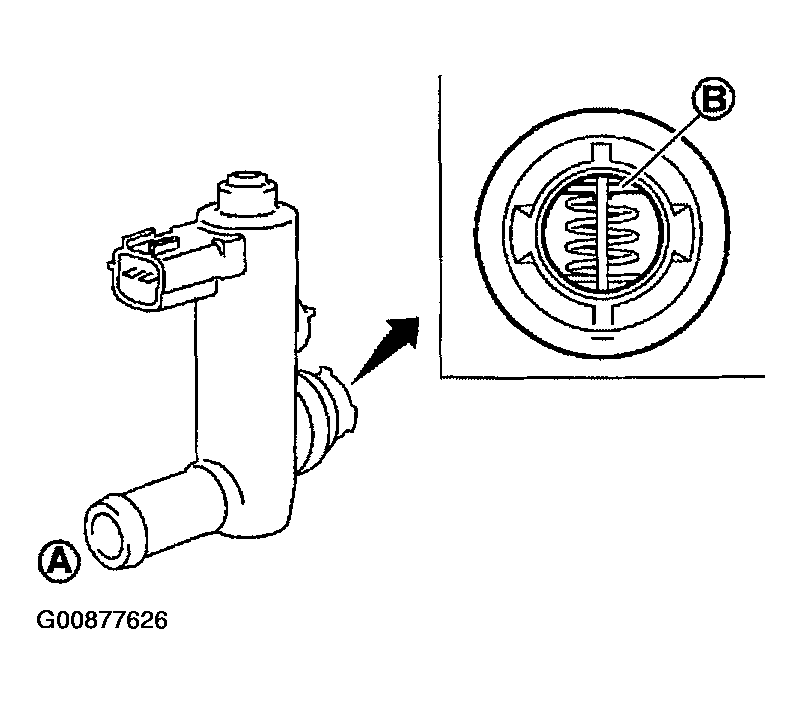

Fig 1: EVAP Canister Vent Control Valve Component Inspection
Courtesy of NISSAN MOTOR CO., U.S.A.
Check air passage continuity and operation delay time under the following conditions.
Make sure new O-ring is installed properly.

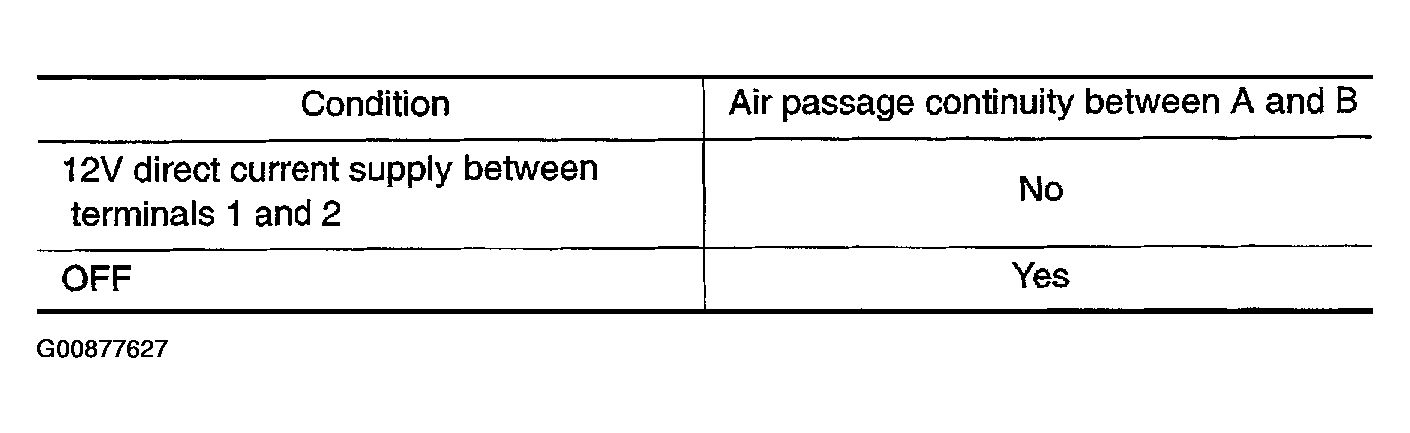

Fig 2: Test Parameters
Courtesy of NISSAN MOTOR CO., U.S.A.

Operation takes less than 1 second.

If NG, replace EVAP canister vent control valve.

If OK, go to next step.

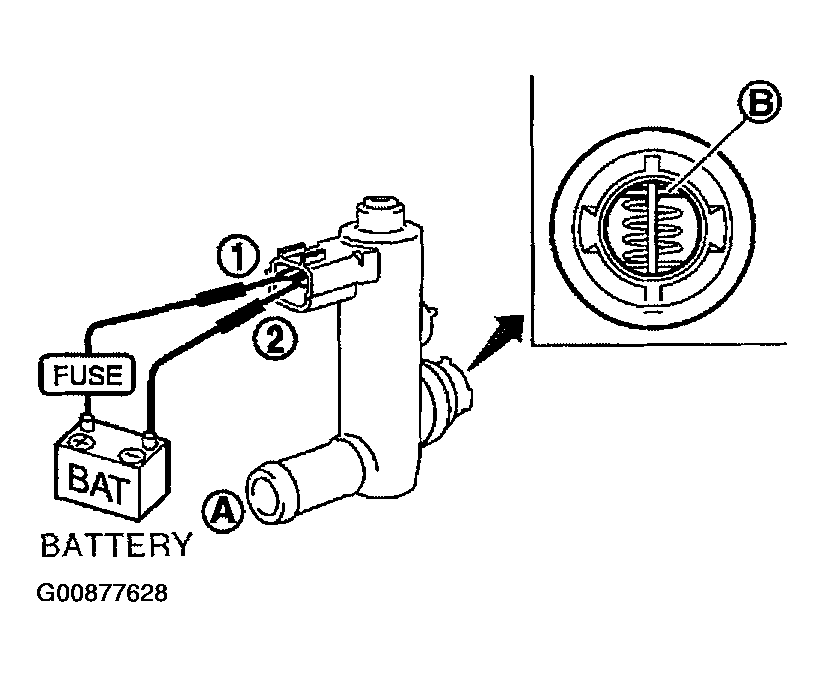

Fig 3: Check Air Passage Continuity And Operation Delay Time Under The Following Conditions
Courtesy of NISSAN MOTOR CO., U.S.A.
Clean the air passage (Portion A or B ) of EVAP canister vent control valve using an air blower.
Perform step 3 again.
