With CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch OFF.
  2. Reconnect all harness connectors disconnected.
  3. Start engine.
  4. Perform "PURG VOL CONT/V" in "ACTIVE TEST" mode with CONSULT-II. Check that engine speed varies according to the valve opening.

OK or NG

  1. OK: GO TO 9 .
  2. NG: GO TO 8.

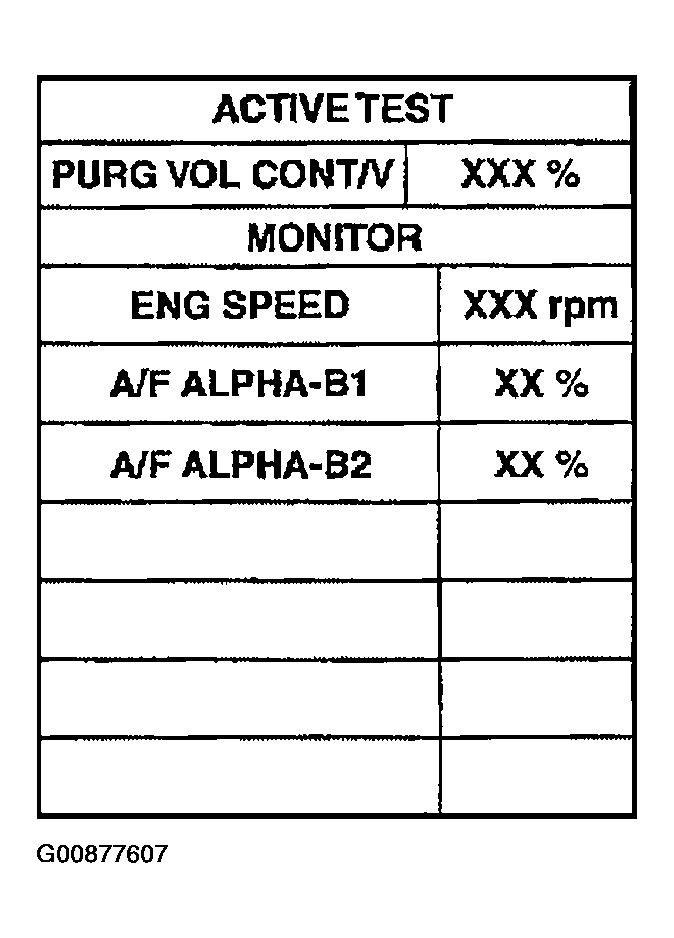

Fig 1: CONSULT-II Display Screen
G00877607Courtesy of NISSAN MOTOR CO., U.S.A.
