Without CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Check air passage continuity of EVAP canister purge volume control solenoid valve under the following conditions.

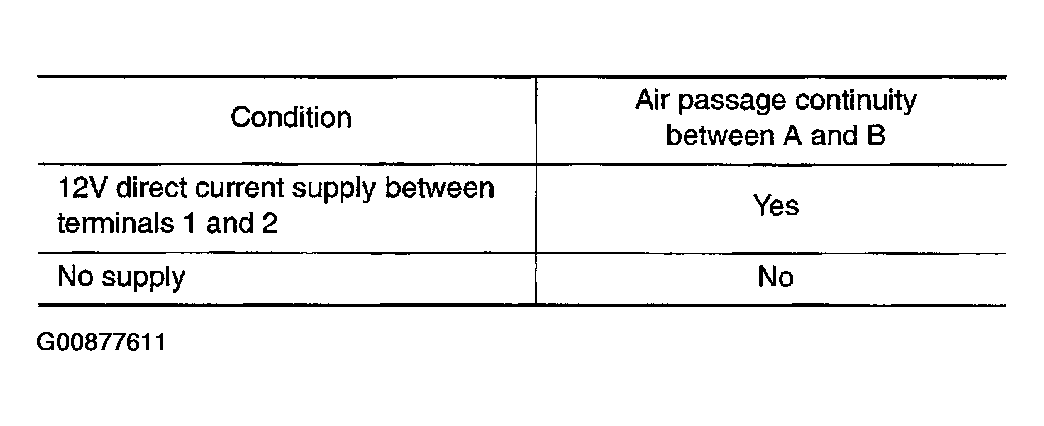

Fig 1: Test Parameters

Courtesy of NISSAN MOTOR CO., U.S.A.

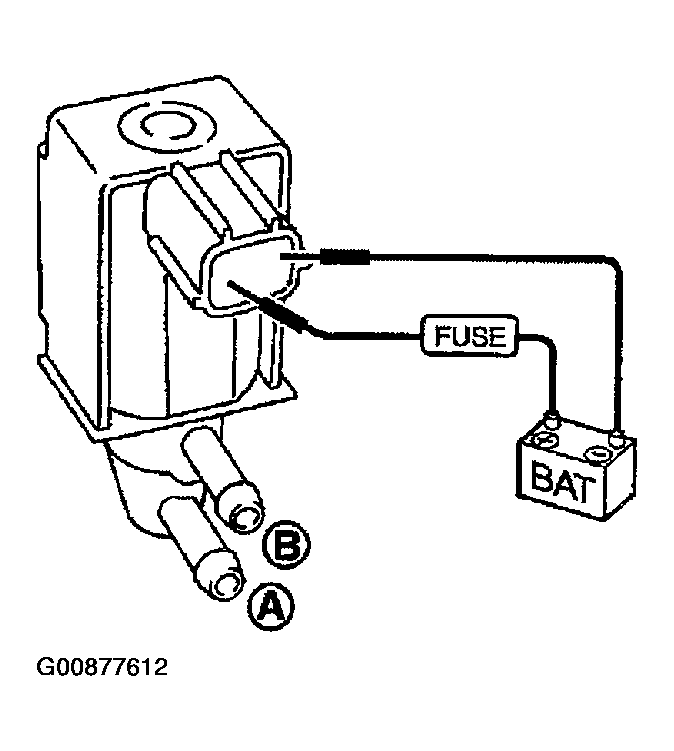

Fig 2: Check Air Passage Continuity Of EVAP Canister Purge Volume Control Solenoid Valve

Courtesy of NISSAN MOTOR CO., U.S.A.
