4. Check Harness Connector
WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
- Turn ignition switch OFF.

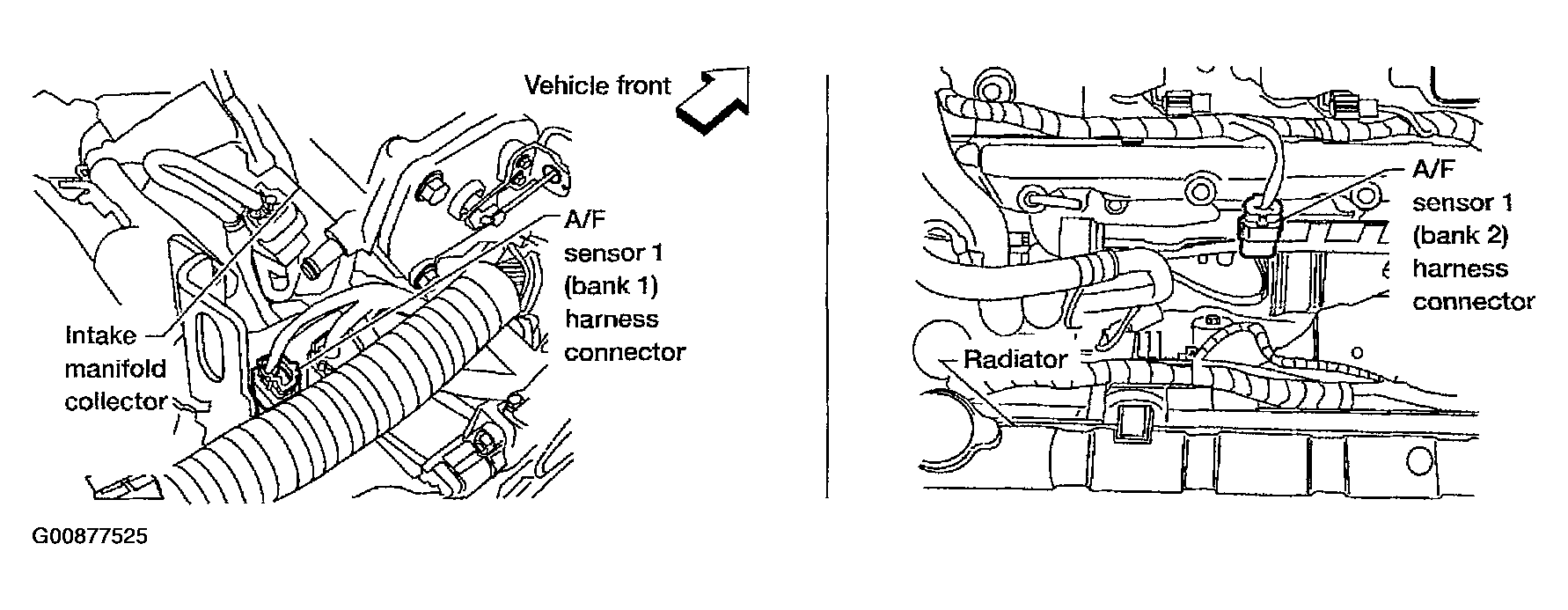

- Disconnect A/F sensor 1 harness connector.
Courtesy of NISSAN MOTOR CO., U.S.A.
- Check harness connector for water.
Water should not exit.
OK or NG
- OK: GO TO 5.
- NG: Repair or replace harness connector.
