7. Check Cooling Fan Motor-2 Circuit-I

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch OFF.
  2. Disconnect cooling fan motor-2 harness connector.

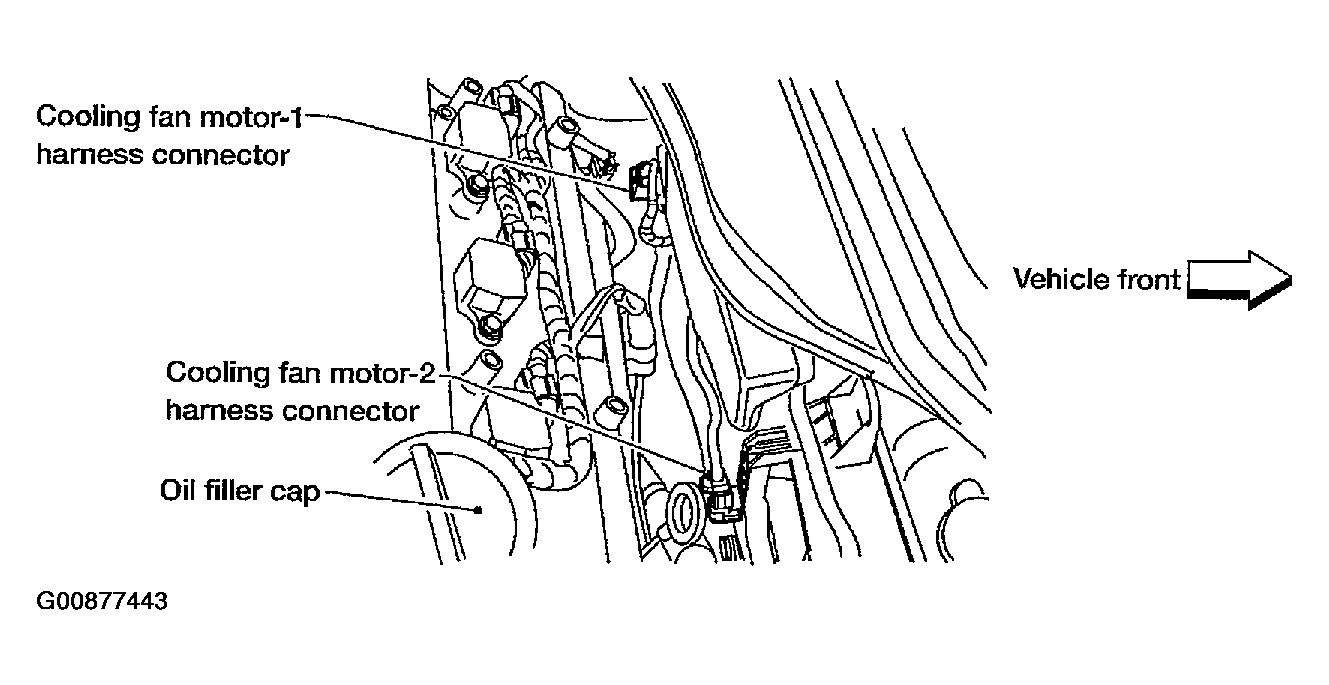

    Fig 1: Disconnect Cooling Fan Motor-2 Harness Connector
    G00877443Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Check harness continuity between cooling fan motor-2 terminals 3, 4 and ground.

    Refer to Wiring diagram.

    1. Continuity should exist.
  4. Also check harness for short to power.

OK or NG

  1. OK: GO TO 8.
  2. NG: Repair open circuit or short to power in harness or connectors.
