4. Check Cooling Fan Motor-1 Circuit-I

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect cooling fan motor-1 harness connector.

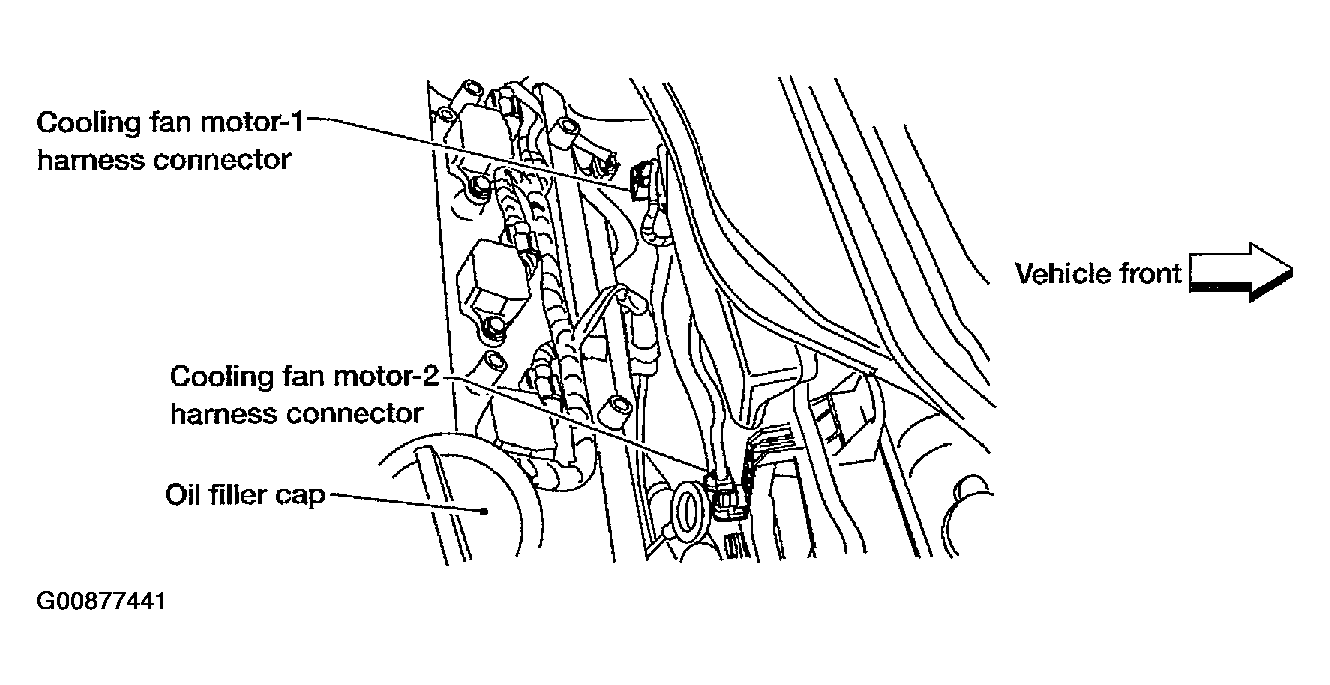

Fig 1: Disconnect Cooling Fan Motor-1 Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Check voltage between cooling fan motor-1 terminals 1, 2 and ground with CONSULT-II or tester.
1. Voltage: Battery voltage

OK or NG

OK: GO TO 6 .
NG: GO TO 5.

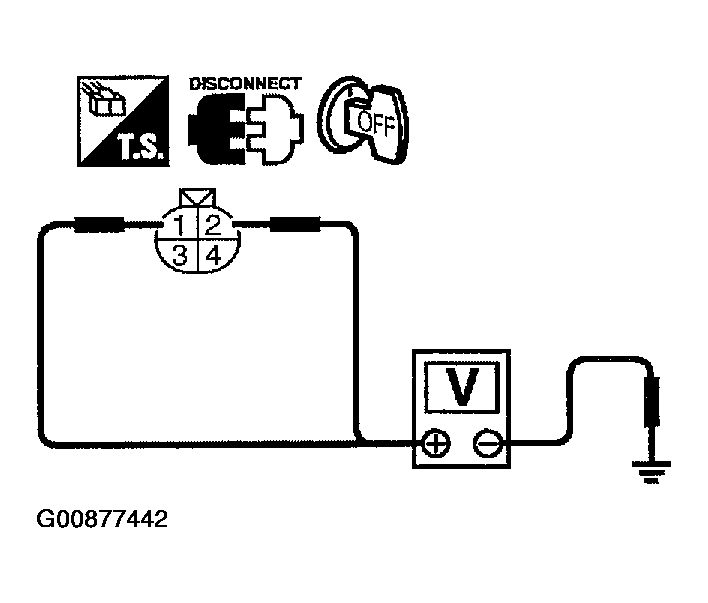

Fig 2: Check voltage

Courtesy of NISSAN MOTOR CO., U.S.A.
