1. Check IPDM E/R Power Supply Circuit

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch OFF.
  2. Disconnect IPDM E/R harness connectors E123.
  3. Check voltage between IPDM E/R terminal 15 and ground with CONSULT-II or tester.
    1. Voltage: Battery voltage

OK or NG

  1. OK: GO TO 3 .
  2. NG: GO TO 2.

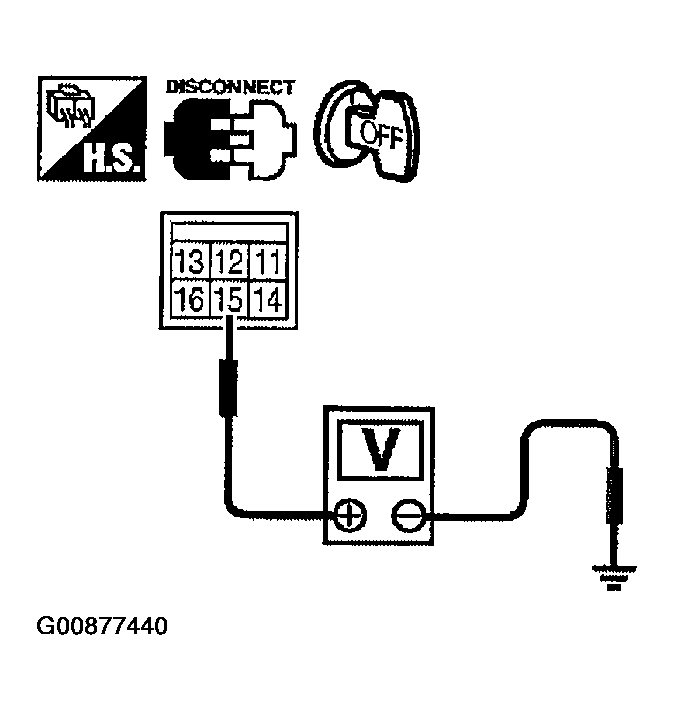

Fig 1: Check voltage
G00877440Courtesy of NISSAN MOTOR CO., U.S.A.
