6. Check Thermostat

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Check valve seating condition at normal room temperatures.
It should seat tightly.
Check valve opening temperature and valve lift.
1. Valve opening temperature: 82°C (180°F) [standard]
2. Valve lift: More than 8.6 mm/95°C (0.339 in/203°F)
Check if valve is closed at 5°C (9°F) below valve opening temperature.
For details, refer to THERMOSTAT AND THERMOSTAT HOUSING .

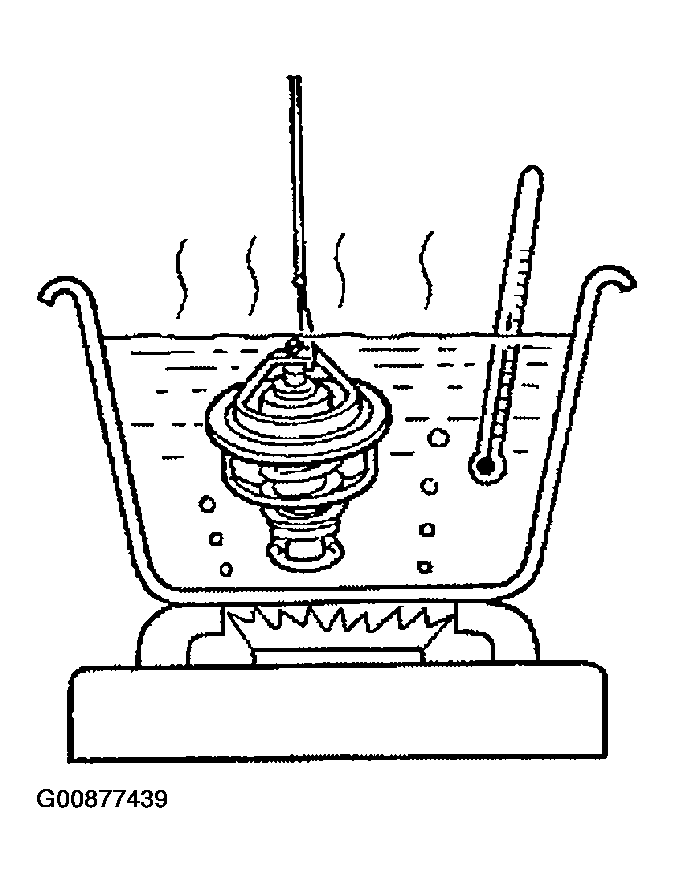

Fig 1: Testing Thermostat
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 7.
NG: Replace thermostat
