Cooling Fan Motors-1 And -2

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect cooling fan motor harness connectors.
Supply cooling fan motor terminals with battery voltage and check operation.

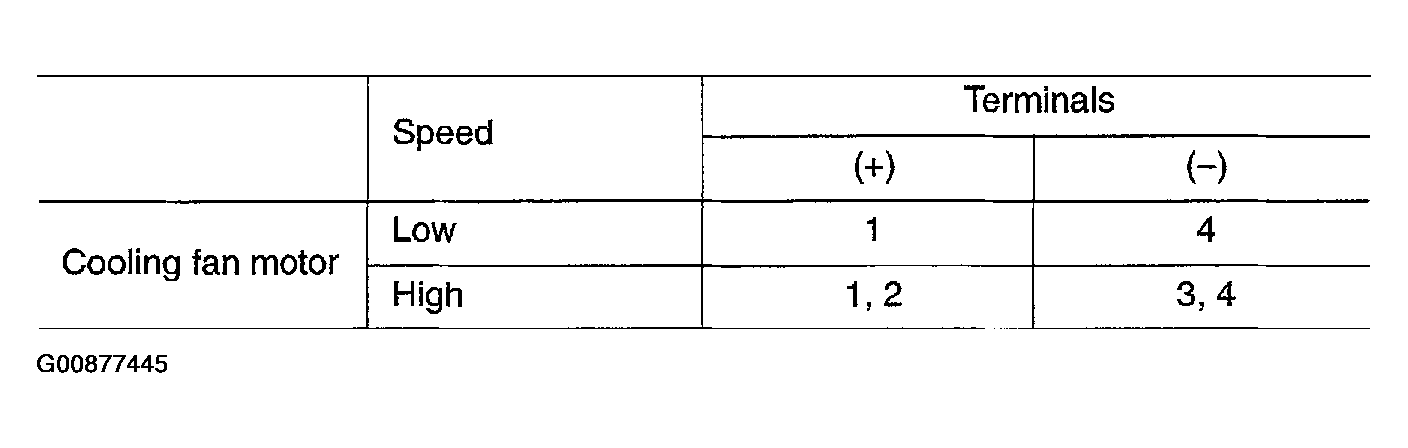

Fig 1: Test Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

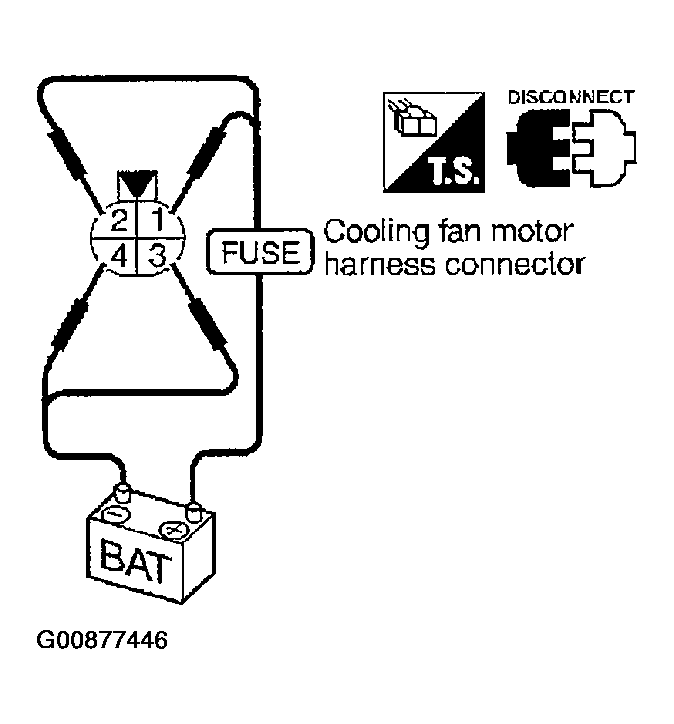

Fig 2: Supply Cooling Fan Motor Terminals With Battery Voltage And Check Operation

Courtesy of NISSAN MOTOR CO., U.S.A.

Cooling fan motor should operate.

If NG, replace cooling fan motor.
