1. Check Intake Valve Timing Control Solenoid Valve Power Supply Circuit

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF.
Disconnect intake valve timing control solenoid valve harness connector.

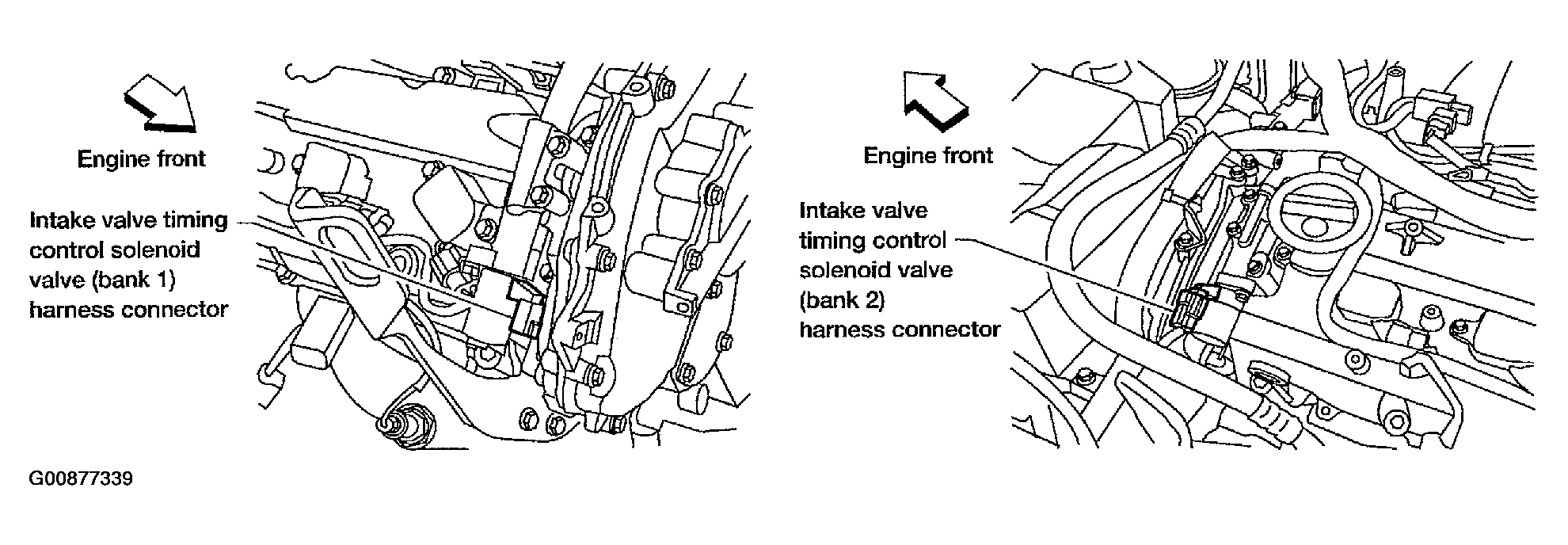

Fig 1: Disconnect Intake Valve Timing Control Solenoid Valve Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Check voltage between intake valve timing control solenoid valve terminal 2 and ground with CONSULT-II or tester.
1. Voltage: Battery voltage

OK or NG

OK: GO TO 3 .
NG: GO TO 2.

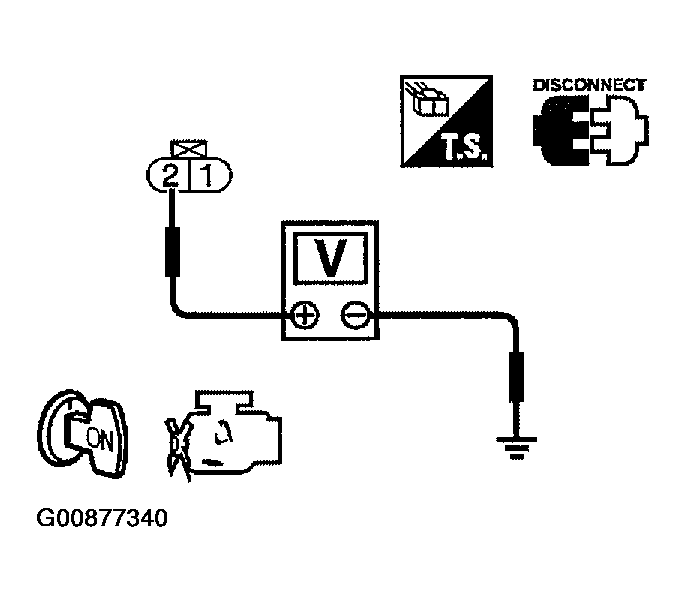

Fig 2: Check Intake Valve Timing Control Solenoid Valve Power Supply Circuit

Courtesy of NISSAN MOTOR CO., U.S.A.
