With CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect vacuum hose to EVAP canister purge volume control solenoid valve at EVAP service port.
  2. Start engine.
  3. Perform "PURG VOL CONT/V" in "ACTIVE TEST" mode.
  4. Touch "Qu" on CONSULT-II screen to increase "PURG VOL CONT/V" opening to 100%.
  5. Check vacuum hose for vacuum when revving engine up to 2,000 RPM.

OK or NG

  1. OK: GO TO 16 .
  2. NG: GO TO 15 .

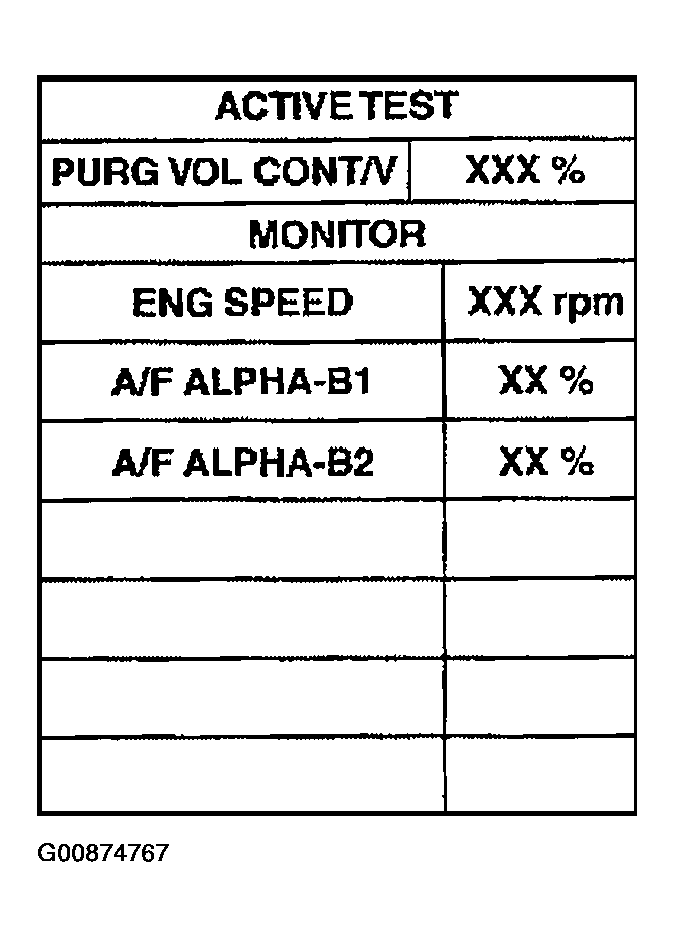

Fig 1: CONSULT-II Display Screen.
G00874767Courtesy of NISSAN MOTOR CO., U.S.A.
