10. Check If EVAP Canister Saturated With Water

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Remove EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor attached.
Does water drain from the EVAP canister?

Yes or No

Yes: GO TO 11.
No (With CONSULT-II): GO TO 13 .
No (Without CONSULT-II): GO TO 14 .

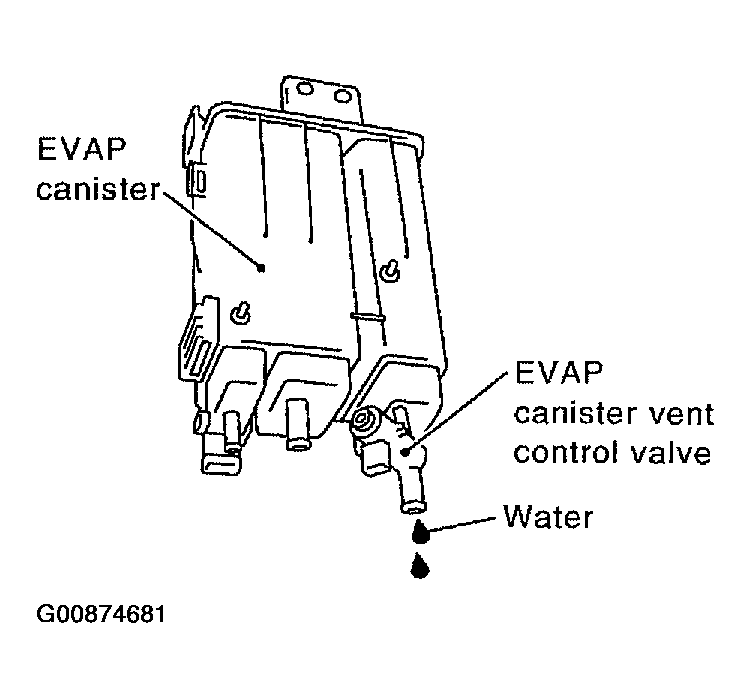

Fig 1: Check If EVAP Canister Saturated With Water

Courtesy of NISSAN MOTOR CO., U.S.A.
