3. Check EVAP Canister Vent Control Valve Power Supply Circuit

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF.
Disconnect EVAP canister vent control valve harness connector.

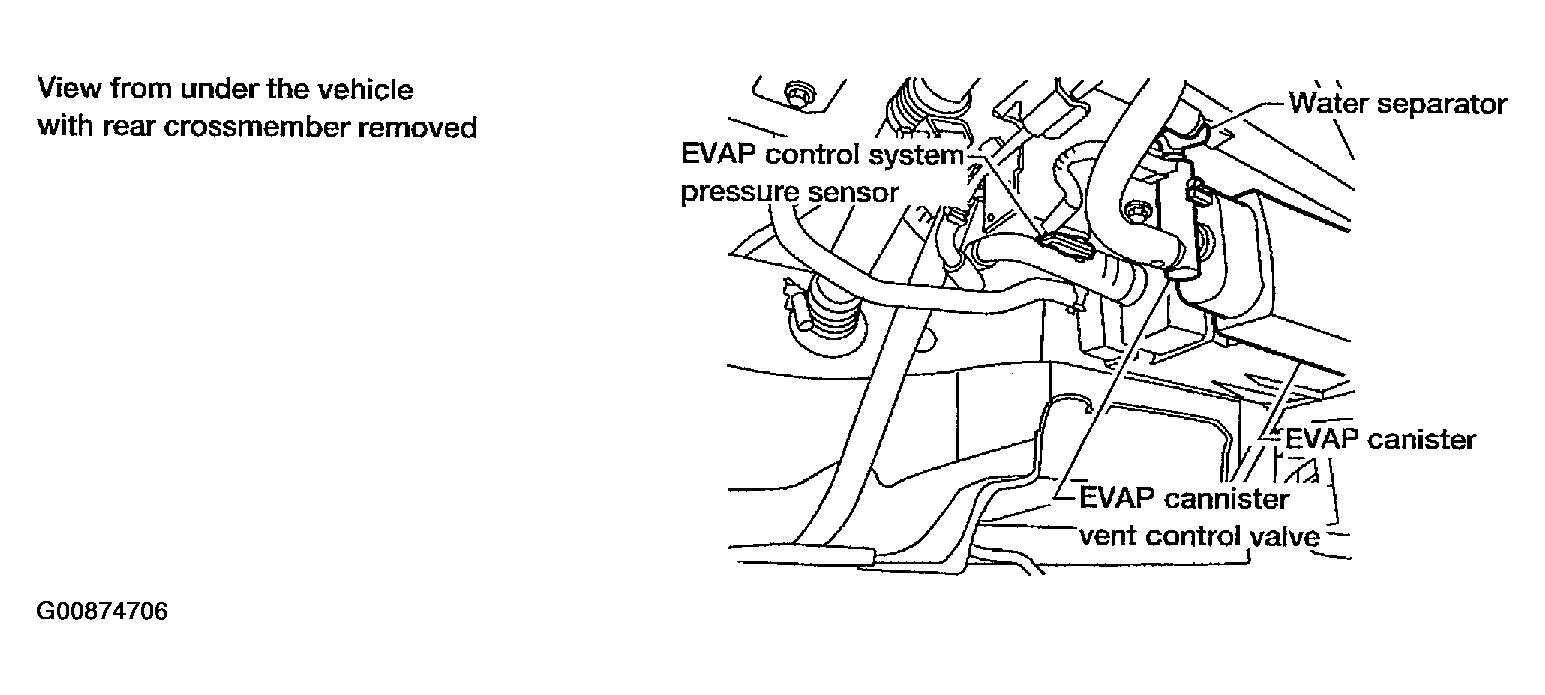

Fig 1: EVAP Canister & Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Check voltage between EVAP canister vent control valve terminal 1 and ground with CONSULT-II or tester.
1. Voltage: Battery voltage

OK or NG

OK: GO TO 5 .
NG: GO TO 4.

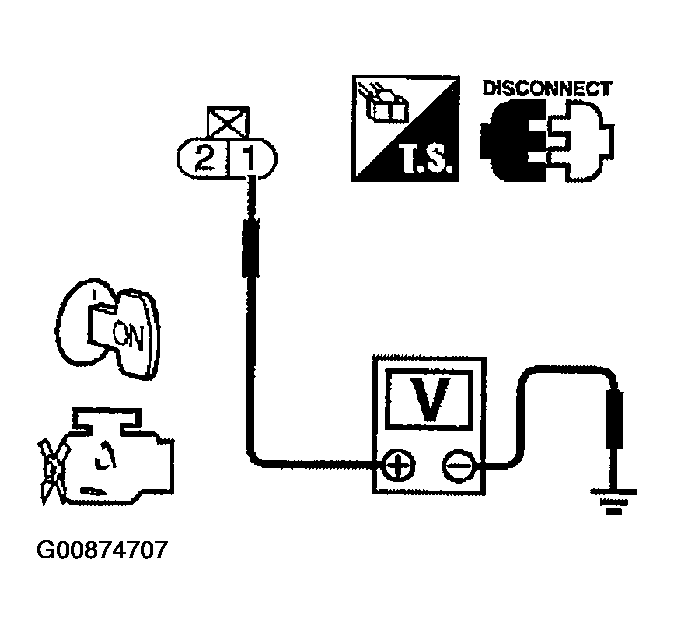

Fig 2: Checking Voltage

Courtesy of NISSAN MOTOR CO., U.S.A.
