With CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Check air passage continuity of EVAP canister purge volume control solenoid valve using "PURG VOL CONT/V" in "ACTIVE TEST" mode with CONSULT-II under the following conditions.

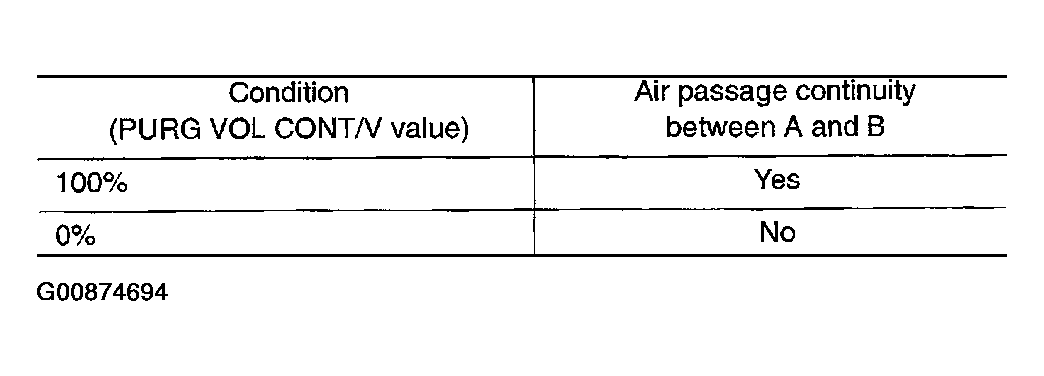

Fig 1: Test Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

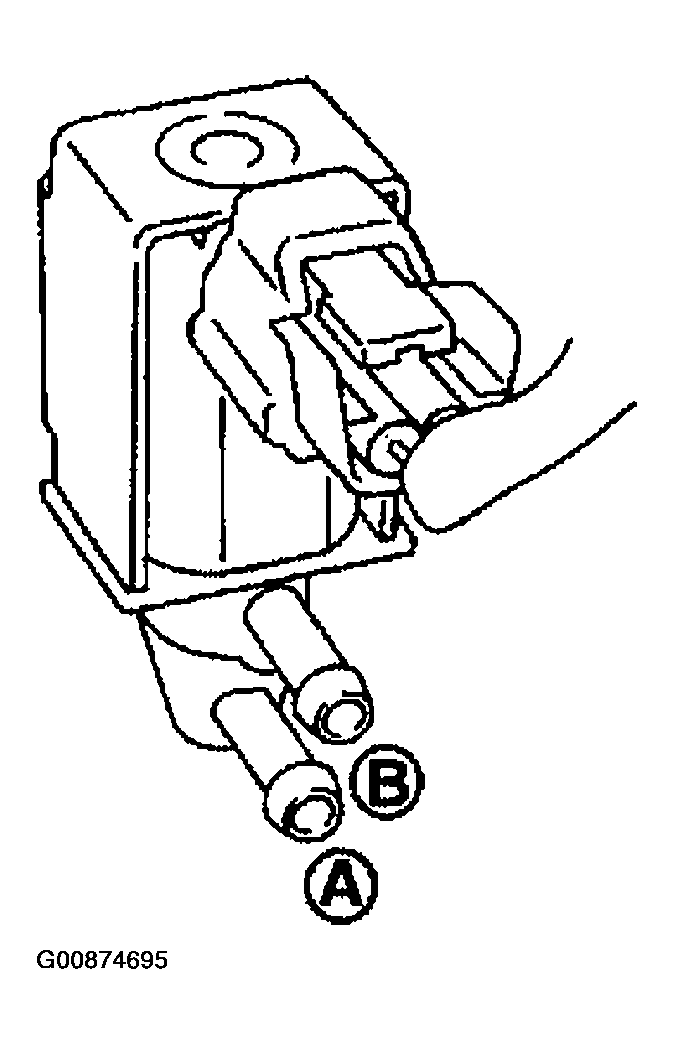

Fig 2: Testing EVAP Canister Purge Volume Control Solenoid Valve

Courtesy of NISSAN MOTOR CO., U.S.A.
