Crankshaft Position Sensor (POS)

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the fixing bolt of the sensor.
  2. Disconnect crankshaft position sensor (POS) harness connector.
  3. Remove the sensor.
  4. Visually check the sensor for chipping.

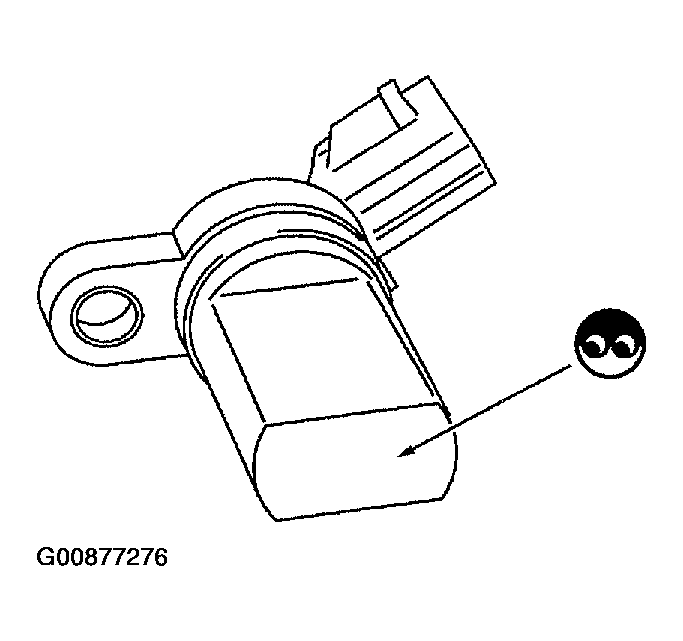

    Fig 1: Visually Check The Sensor For Chipping
    G00877276Courtesy of NISSAN MOTOR CO., U.S.A.
  5. As shown in Fig 2 And Fig 3

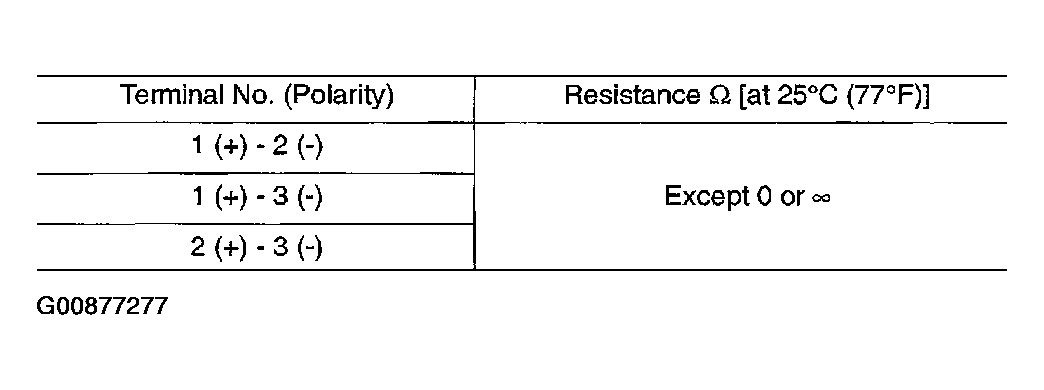

Fig 2: Test Specifications
G00877277Courtesy of NISSAN MOTOR CO., U.S.A.

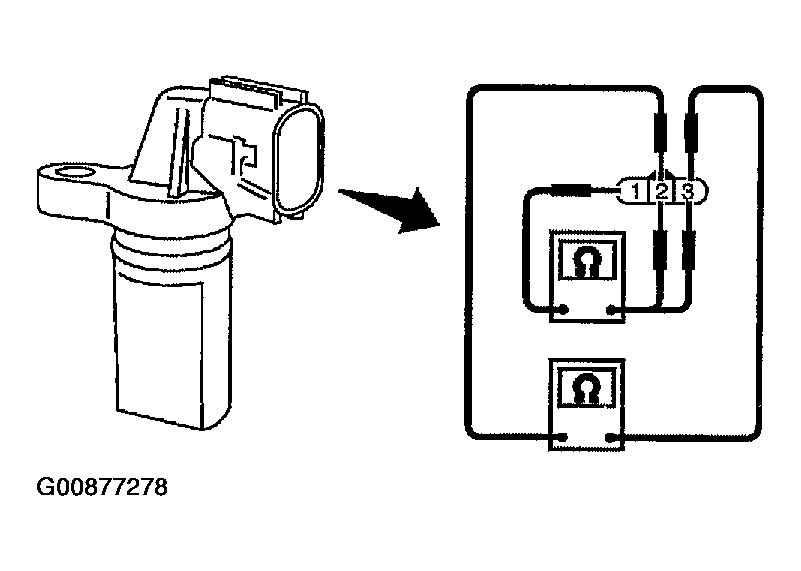

Fig 3: Check Resistance
G00877278Courtesy of NISSAN MOTOR CO., U.S.A.
