With CONSULT-II
WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
- Turn ignition switch ON and select "DATA MONITOR" mode with CONSULT-II.
- Start engine and warm it up to the normal operating temperature.
- Turn ignition switch OFF and wait at least 10 seconds.
- Start the engine and keep the engine speed between 3,500 RPM and 4,000 RPM for at least 1 minute under no load.
- Let engine idle for 1 minute.
- If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE ". See Fig 1.

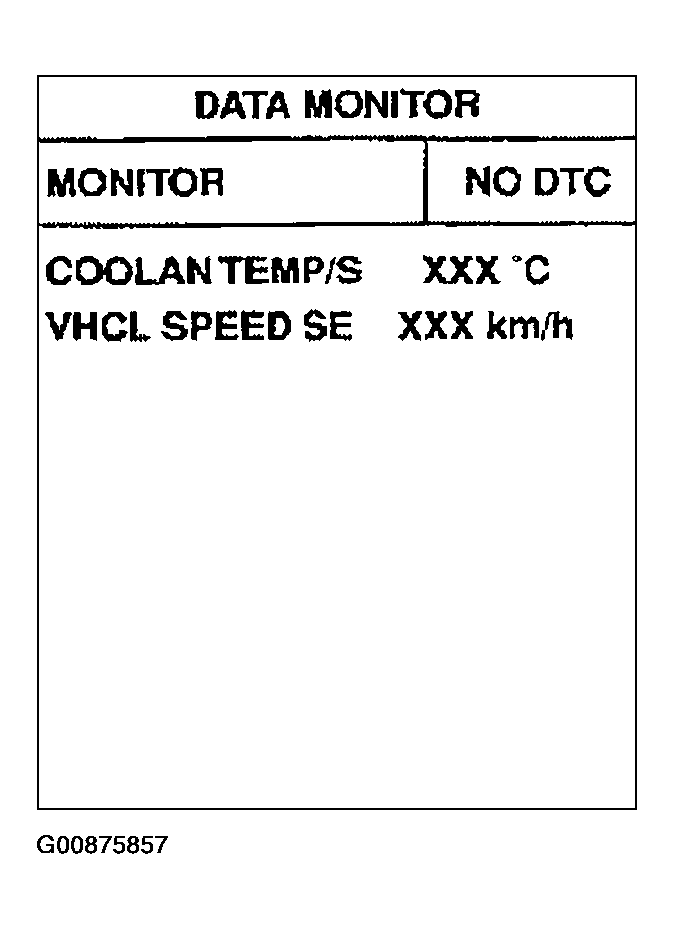

Test Parameters CONSULT-II Display Screen
