Camshaft Sprocket Runout
WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
- Install camshaft sprocket on camshaft.

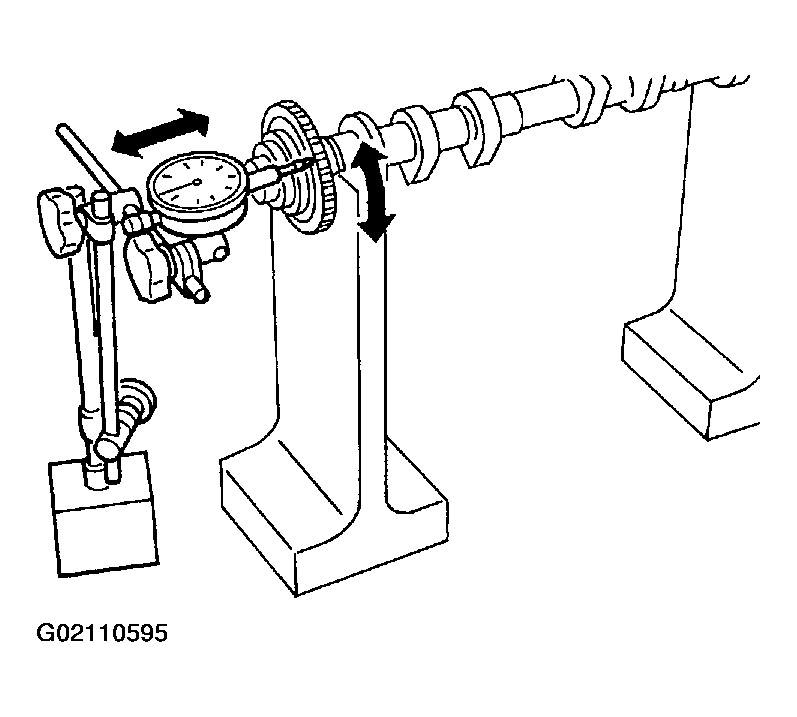

- Measure camshaft sprocket runout.
- Runout :Less than 0.15 mm (0.0059 in)
- If sprocket runout exceeds the limit, replace camshaft sprocket.
Courtesy of NISSAN MOTOR CO., U.S.A.
