Removal and Installation: Removal

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the ignition coil. Refer to IGNITION COIL  .
  2. Remove the spark plug with a suitable spark plug wrench.

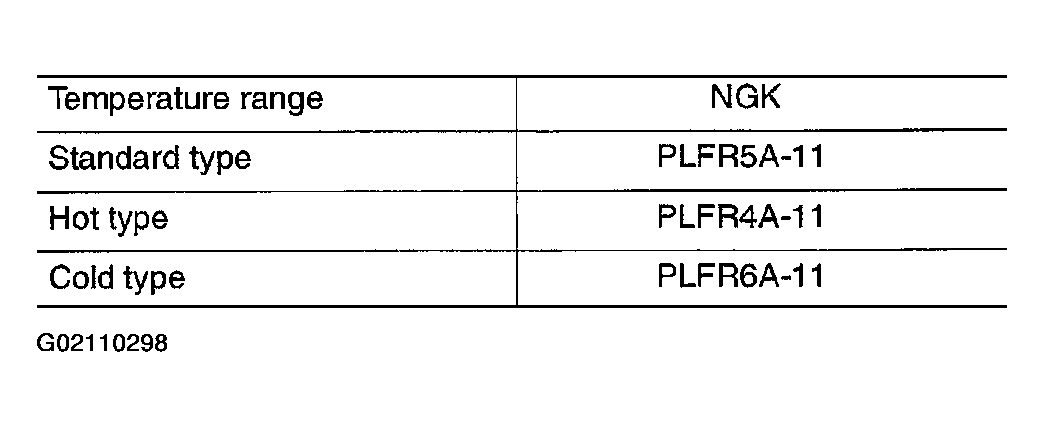

    Fig 1: Spark Plug Applications
    G02110298Courtesy of NISSAN MOTOR CO., U.S.A.

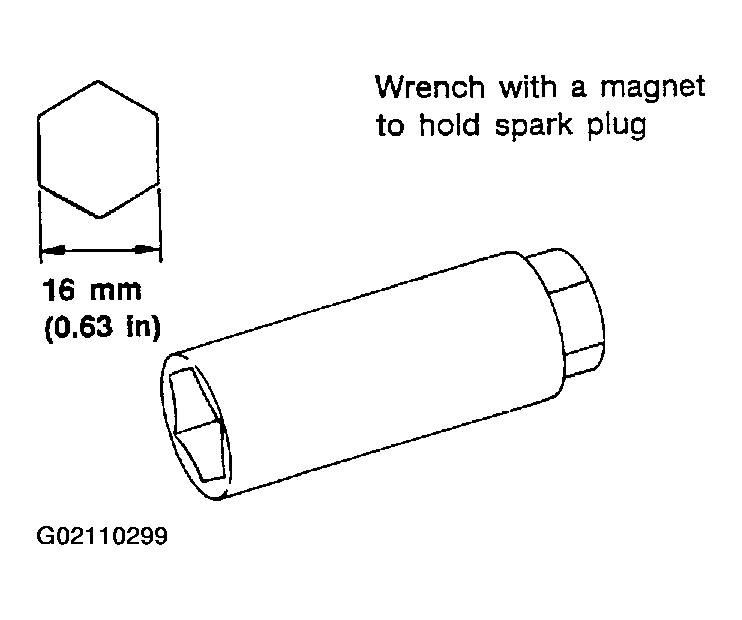

    Fig 2: View Of Spark Plug Socket
    G02110299Courtesy of NISSAN MOTOR CO., U.S.A.
