Removal and Installation: Removal

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the ignition coils. Refer to REMOVAL AND INSTALLATION  .
  2. Disconnect the PCV hose and breather hose from the rocker cover.
  3. Loosen the bolts in the numerical order as shown using power tool.
  4. Remove the rocker cover. Remove the oil filler cap and PCV valve if necessary, to transfer to the new rocker cover.

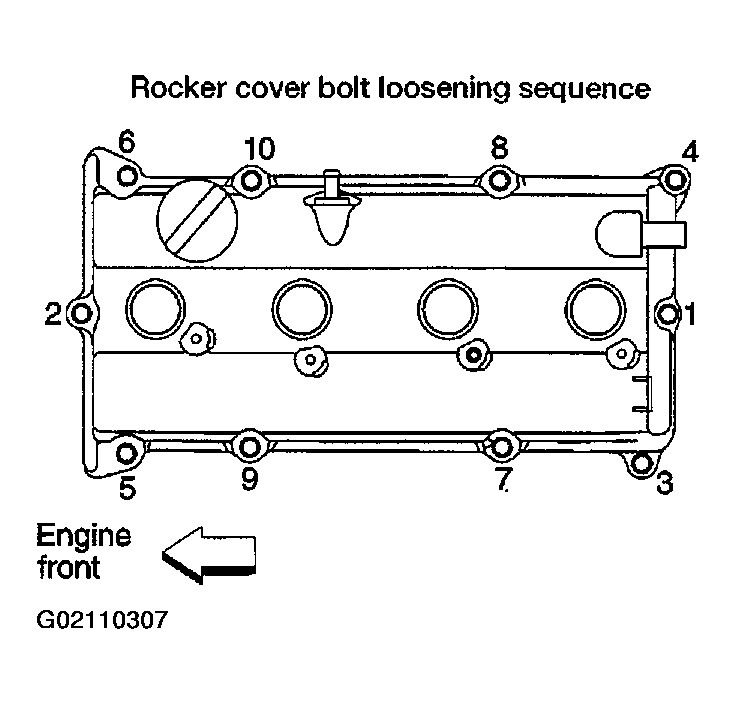

    Fig 1: View Of Rocker Cover Loosening Sequence
    G02110307Courtesy of NISSAN MOTOR CO., U.S.A.
