Liquid Gasket Application Procedure

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Using a scraper, remove the old RTV Silicone Sealant adhering to the gasket application surface and the mating surface.
- Remove the sealant completely from the groove of the gasket application surface, mounting bolts, and bolt holes.
Thoroughly clean the gasket application surface and the mating surface and remove adhering moisture, grease and foreign materials.
Attach the sealant tube to the tube presser.
Use Genuine RTV Silicone Sealant or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .
Apply the sealant without breaks to the specified location with the specified dimensions.

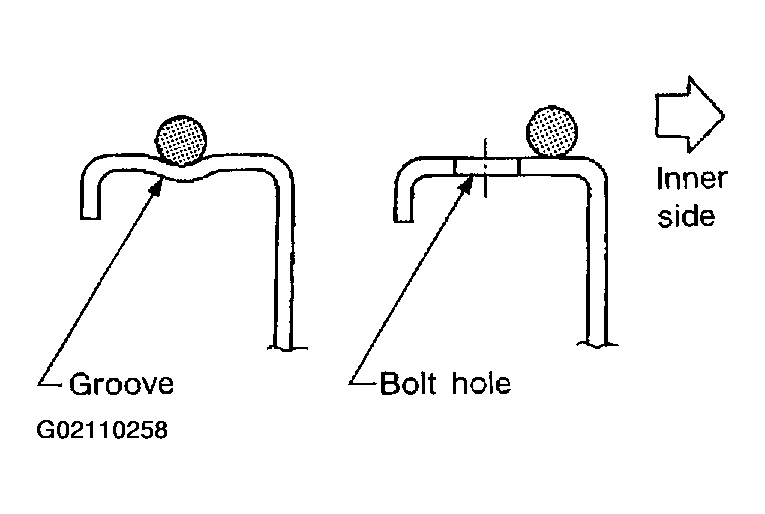

Fig 1: Typical View Of Sealant Application
Courtesy of NISSAN MOTOR CO., U.S.A.
- If there is a groove for the sealant application, apply the sealant to the groove.
- As for the bolt holes, normally apply the sealant inside the holes. If specified, it should be applied outside the holes. Make sure to read the text of this article.

  Fig 2: Applying Sealant
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Within five minutes of the sealant application, install the mating component.
- If the sealant protrudes, wipe it off immediately.
- Do not retighten after the installation.
- After 30 minutes or more have passed from the installation, fill the engine with the specified oil and coolant.
CAUTION: Follow all specific instructions in this article.
