Removal and installation of Valve Oil Seal: Removal

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Remove camshaft. Refer to REMOVAL .
Remove valve lifter. Refer to REMOVAL .
Rotate crankshaft, and set piston whose oil seal is to removed to top dead center. This prevents valve from dropping inside cylinder.
CAUTION: When rotating crankshaft, be careful to avoid scarring the front cover with the timing chain.
Remove valve collet, valve spring retainer and valve spring with Tool.

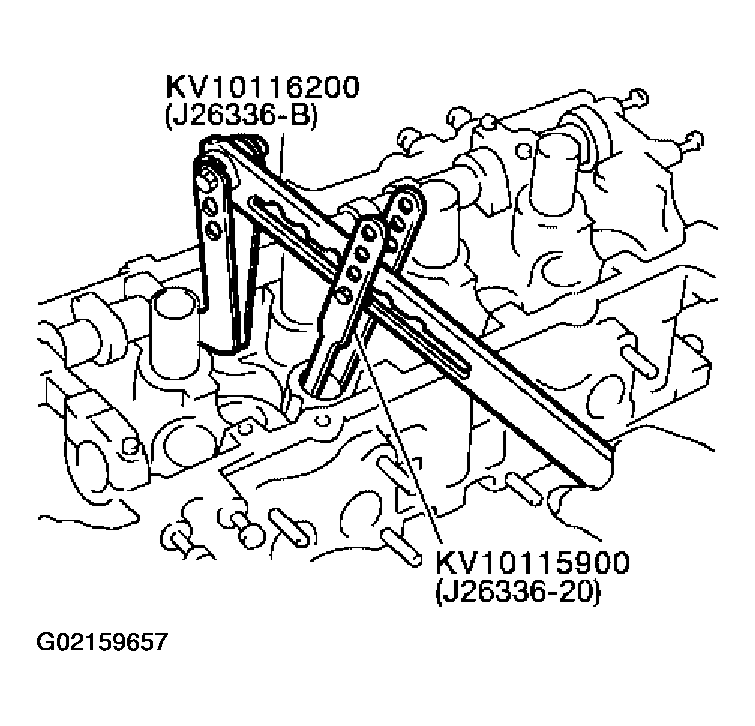

Fig 1: Removing Valve Spring
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove valve oil seal with Tool.

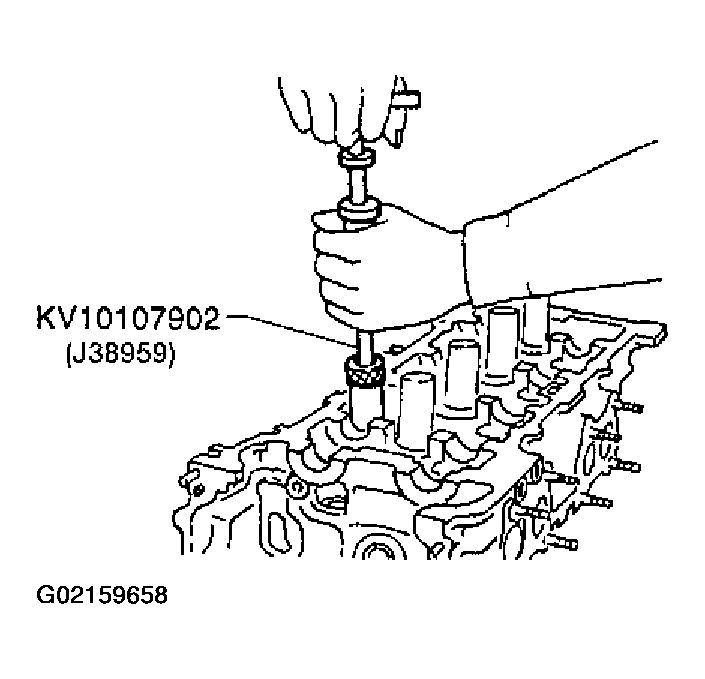

Fig 2: Remove valve oil seal
Courtesy of NISSAN MOTOR CO., U.S.A.
