Removal and Installation of Front Oil Seal: Installation

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Apply new engine oil to new oil seal and install it using a suitable tool.
- Install new oil seal in the direction shown.

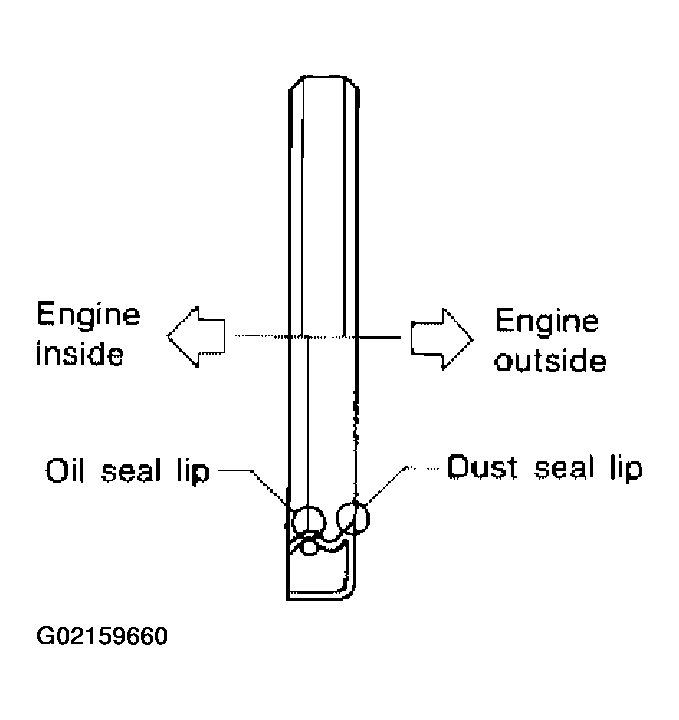

Fig 1: View Of Oil Seal
Courtesy of NISSAN MOTOR CO., U.S.A.

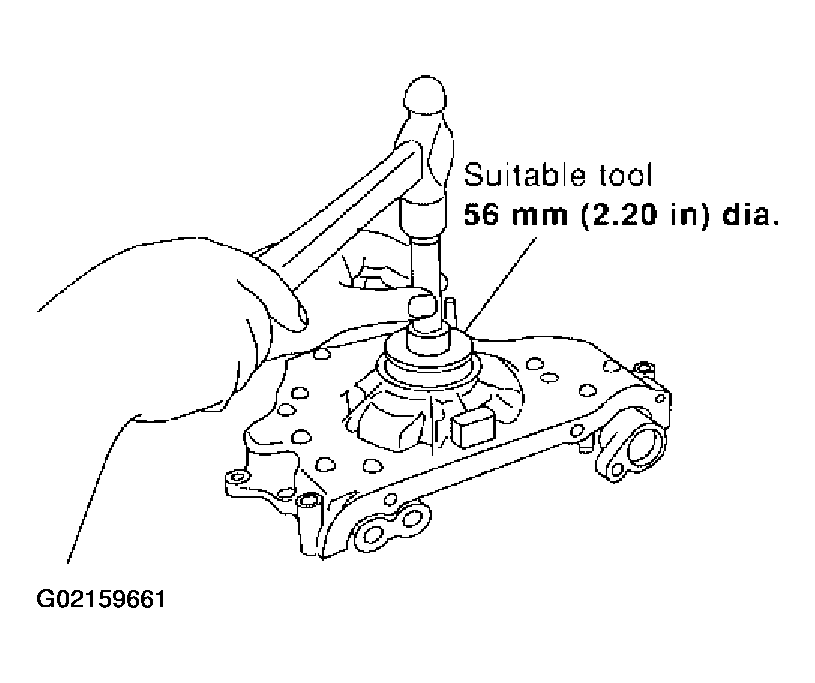

Fig 2: Installing Oil Seal
Courtesy of NISSAN MOTOR CO., U.S.A.
Installation of the remaining components is in reverse order of removal.
