Removal and Installation: Notes

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

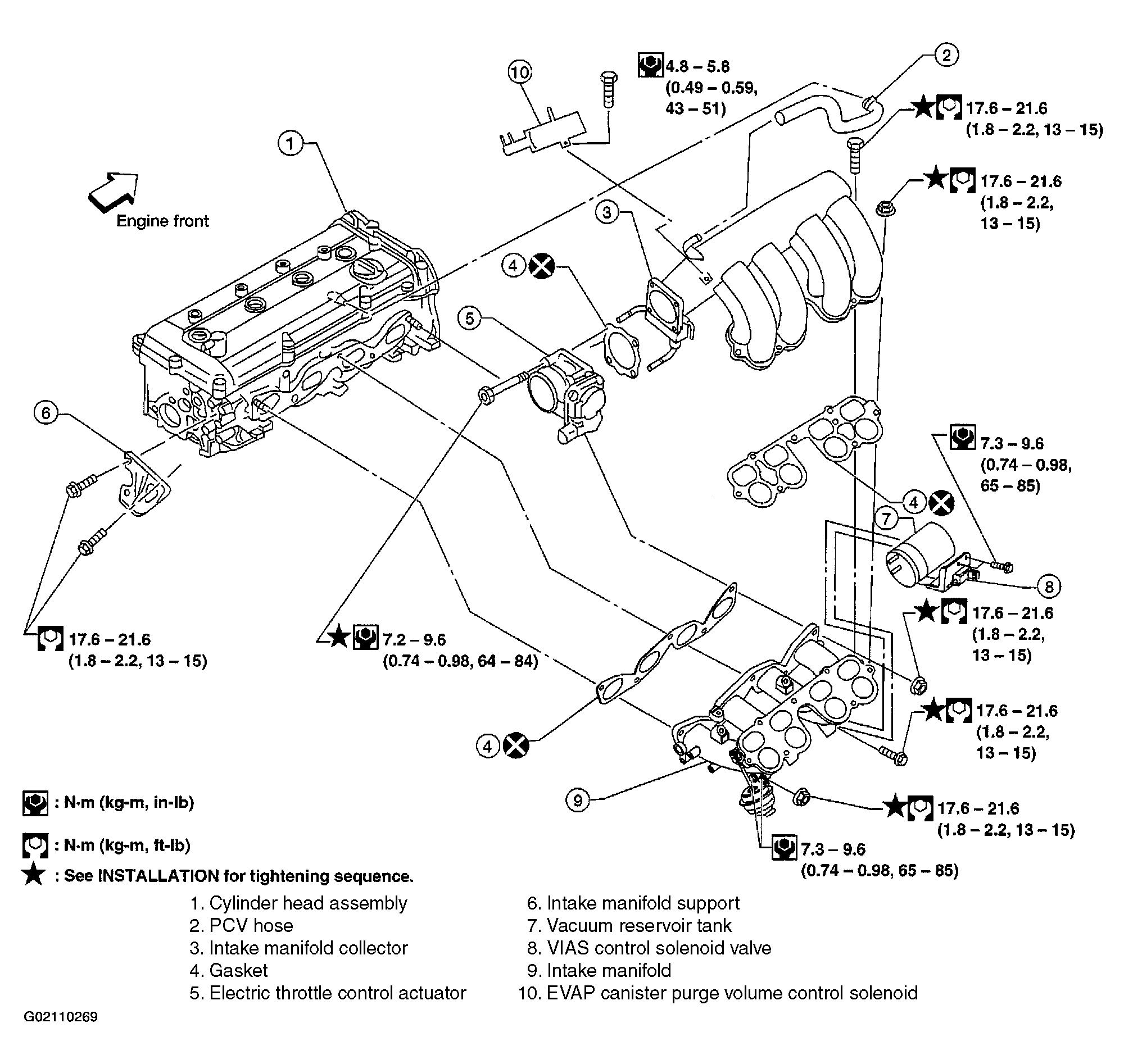

Fig 1: Removal/Installation Of Intake Manifold
G02110269Courtesy of NISSAN MOTOR CO., U.S.A.
