Tightening Intake Manifold Collector Bolts and Nuts

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Tighten in numerical order as shown.
CAUTION: After tightening No. 7 retighten the No. 1 mounting bolt to specification.

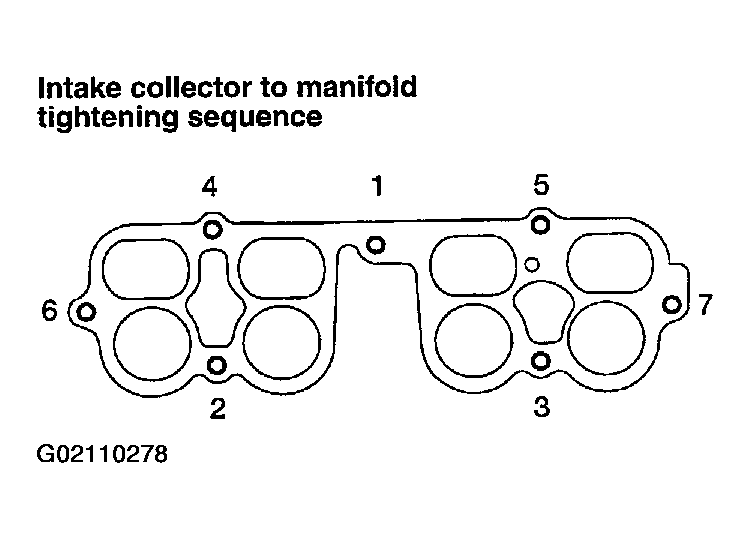

Fig 1: Intake Manifold Collector Tightening Sequence
Courtesy of NISSAN MOTOR CO., U.S.A.

Installation of Electric Throttle Control Actuator:
Tighten the mounting bolts of electric throttle control actuator equally and diagonally in several steps.
1. Electric throttle control actuator mounting bolts :7.2 - 9.6 N.m (0.74 - 0.98 kg-m, 64 - 84 in-lb)
After installation perform procedure in INSPECTION AFTER INSTALLATION .
