Tightening Intake Manifold Bolts and Nuts

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: After tightening No. 5 retighten the No. 1 mounting bolt to specification.

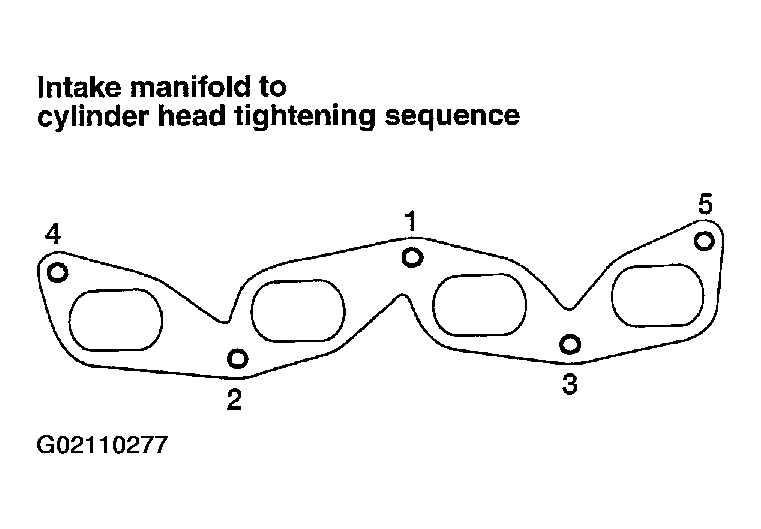

Fig 1: Intake Manifold Assembly Tightening Sequence
G02110277Courtesy of NISSAN MOTOR CO., U.S.A.
