Removal and Installation: Removal
WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
- Release the fuel pressure. Refer to FUEL PRESSURE RELEASE .
- Remove the intake air duct. Refer to REMOVAL AND INSTALLATION .
- Disconnect the fuel hose quick connector at the fuel tube side.
- For how to disconnect and connect the quick connector, refer to INTAKE MANIFOLD .
CAUTION:- Prepare a container and cloth for catching any spilled fuel.
- This operation should be performed in a place that is free from any open flames.
- While hoses are disconnected seal their openings with vinyl bag or similar material to prevent foreign material from entering them.
- Remove the intake collector. Refer to INTAKE MANIFOLD .
- Disconnect sub-harness for injector at engine front side, and remove it from bracket.

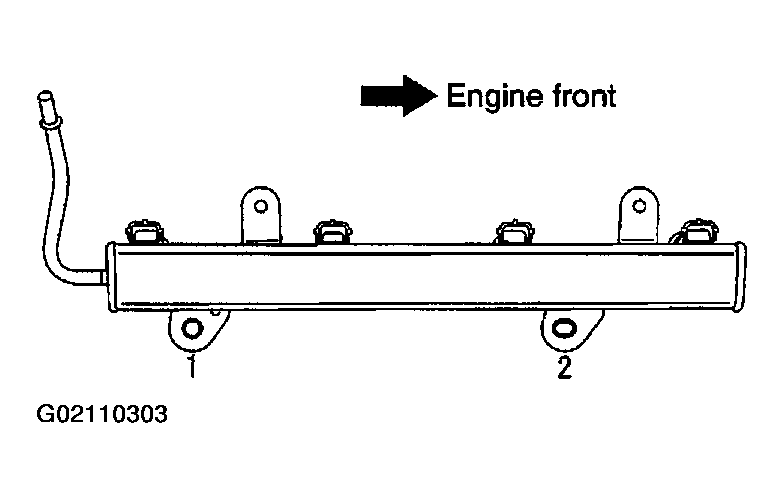

- Loosen the mounting bolts in the order as shown, then remove fuel tube and fuel injectors as an assembly.
- Remove the fuel injectors from the fuel tube.
- Release the clip and remove the fuel injector.
- Pull fuel injector straight out of the fuel tube.
- Be careful not to damage the nozzle.
- Avoid any impact, such as dropping the fuel injector.
- Do not disassemble or adjust the fuel injector.
