Valve Spring Squareness
WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

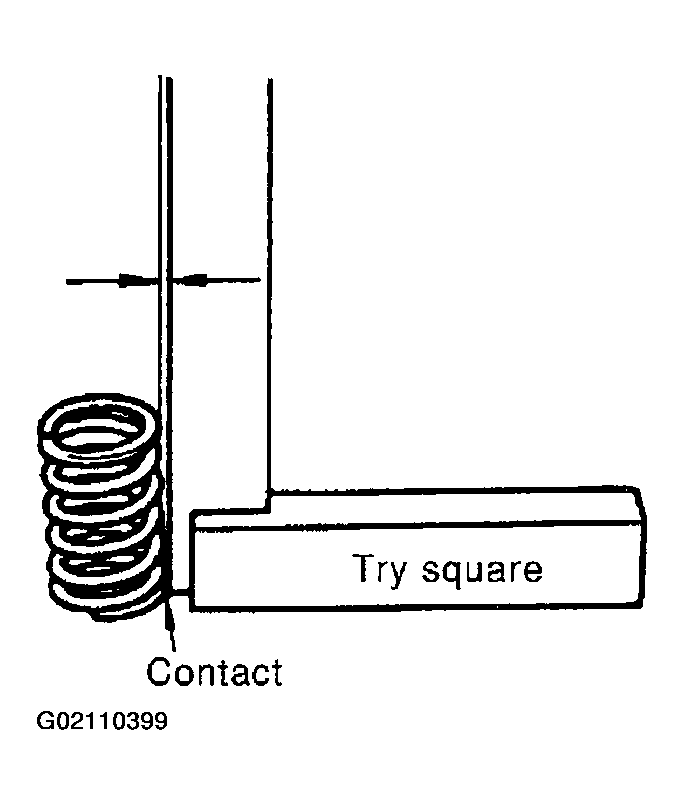

Set try square along the side of the valve spring and rotate the spring. Measure the maximum clearance between the top face of the spring and the try square.
- Limit : 1.9 mm (0.0748 in)
Courtesy of NISSAN MOTOR CO., U.S.A.
