Outer Diameter Of Lower Cylinder Block Mounting Bolt

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Perform only with M10 (0.39 in) bolts.
Measure outer diameters (d1, d2) at two positions as shown.
Measure d2 at a point within block A.
When the value of d1-d2 exceeds the limit (a large difference in dimensions), replace the bolt with a new one.
1. Limit : 0.13 mm (0.0051 in) or more

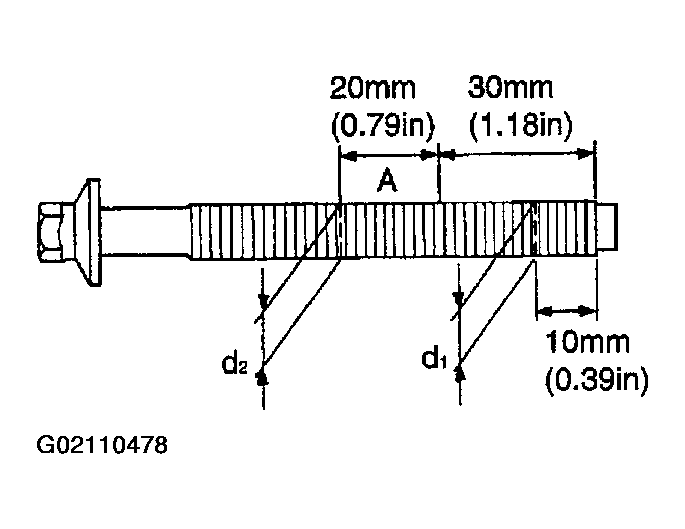

Fig 1: Checking Outer Diameter Of Lower Cylinder Block Mounting Bolt
Courtesy of NISSAN MOTOR CO., U.S.A.
