Section 412 (Engine Mechanical - 2.5L)
>>
Cylinder Block
>>
Inspection After Disassembly
>>
Outer Diameter Of Crankshaft Pin
Outer Diameter Of Crankshaft Pin
WARNING:
This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
Measure outer diameter of crankshaft pin.
Standard : 44.956 - 44.974 mm (1.7699 - 1.7706 in)

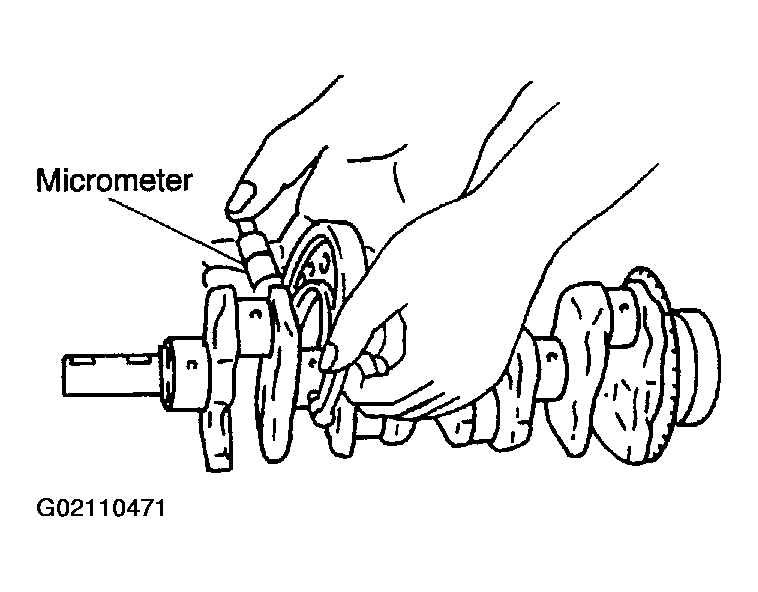

Fig 1: Checking Outer Diameter Of Crankshaft Pin
Courtesy of NISSAN MOTOR CO., U.S.A.
