Outer Diameter Of Connecting Rod Bolt
WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

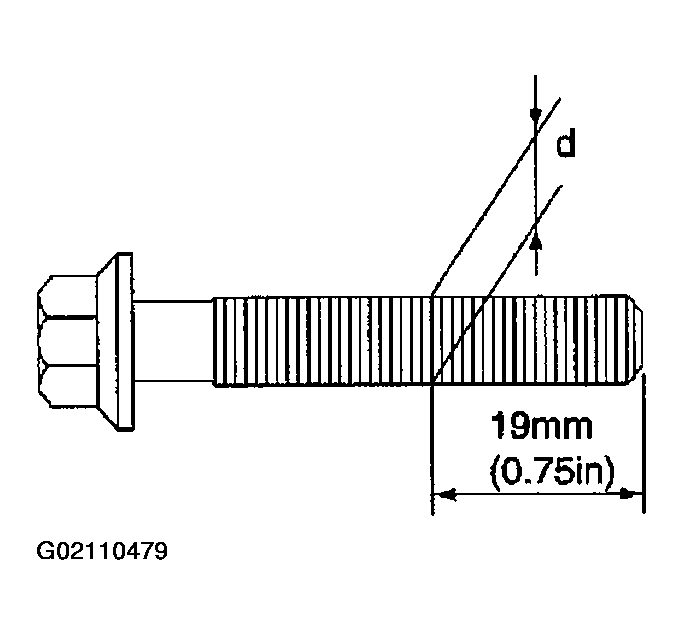

- Measure outer diameter (d) at position shown in the figure.
- When "d" exceeds the limit (when it becomes thinner), replace the bolt with a new one.
- Limit : 7.75 mm (0.3051 in) or less
Courtesy of NISSAN MOTOR CO., U.S.A.
