Out-Of-Round And Taper Of Crankshaft

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Using a micrometer, measure the dimensions at four different points shown in the figure on each journal and pin.
Out-of-round is indicated by the difference in dimensions between "X" and "Y" at "A" and "B".
Taper is indicated by the difference in dimension between "A" and "B" at "X" and "Y".
1. Limit
2. Out-of-round (X-Y) : 0.005 mm (0.0002 in)
3. Taper (A - B) : 0.005 mm (0.0002 in)

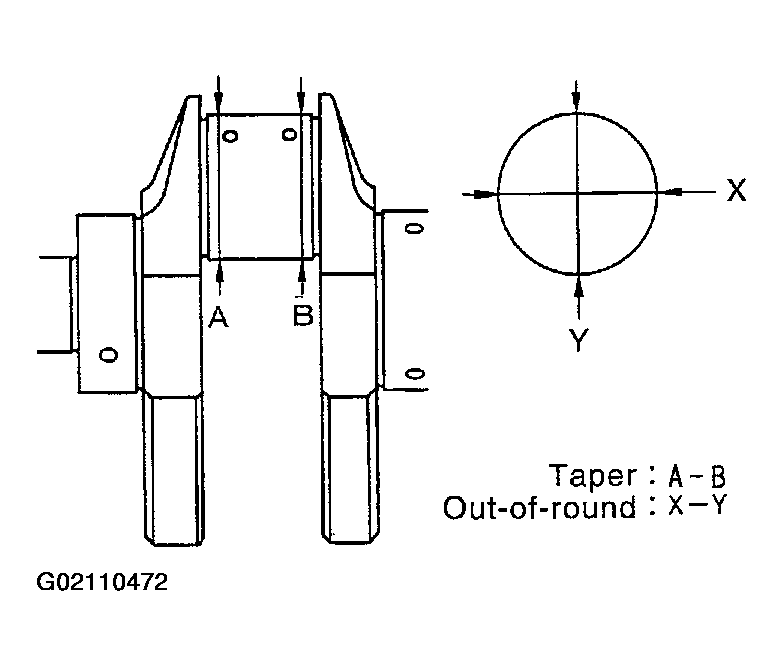

Fig 1: Checking Out-Of-Round And Taper Of Crankshaft
Courtesy of NISSAN MOTOR CO., U.S.A.
