Movement Amount in Radial (Rotation) Direction
WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
- Check the movement amount in the following procedure.

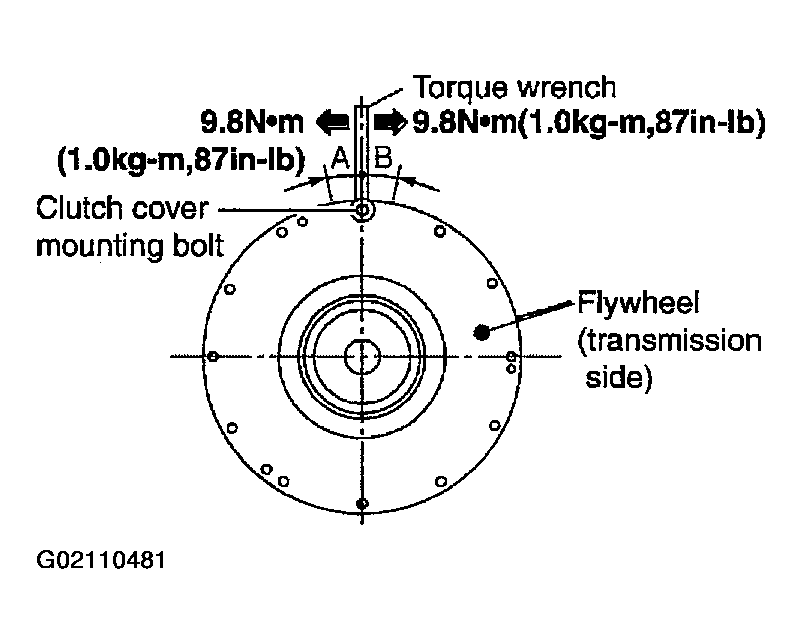

- Install a bolt to clutch cover mounting hole, and place a torque wrench on the extended line of the flywheel center line.
- Tighten bolt to keep it from loosening at a force of 9.8 N.m (1 kg-m, 87 in-lb).
- Put a mating mark on circumferences of the two flywheel masses without applying any load (measurement standard points).
- Apply a force of 9.8 N.m (1 kg-m, 87 in-lb) in each direction, and mark the movement amount on the mass on the transmission side.
- Measure dimensions of movement amounts A and B on circumference of the flywheel on the transmission side.
- Standard : 28.3 mm (1.114 in) or less
- When measured value is outside the standard, replace flywheel.
