Connecting Rod Side Clearance

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Measure side clearance between connecting rod and crankshaft arm with feeler gauge.
1. Standard : 0.20 - 0.35 mm (0.0079 - 0.0138 in)
2. Limit : 0.50 mm (0.0197 in)
If the measured value exceeds the limit, replace the connecting rod bearings, and measure again. If it still exceeds the limit, replace the crankshaft also.

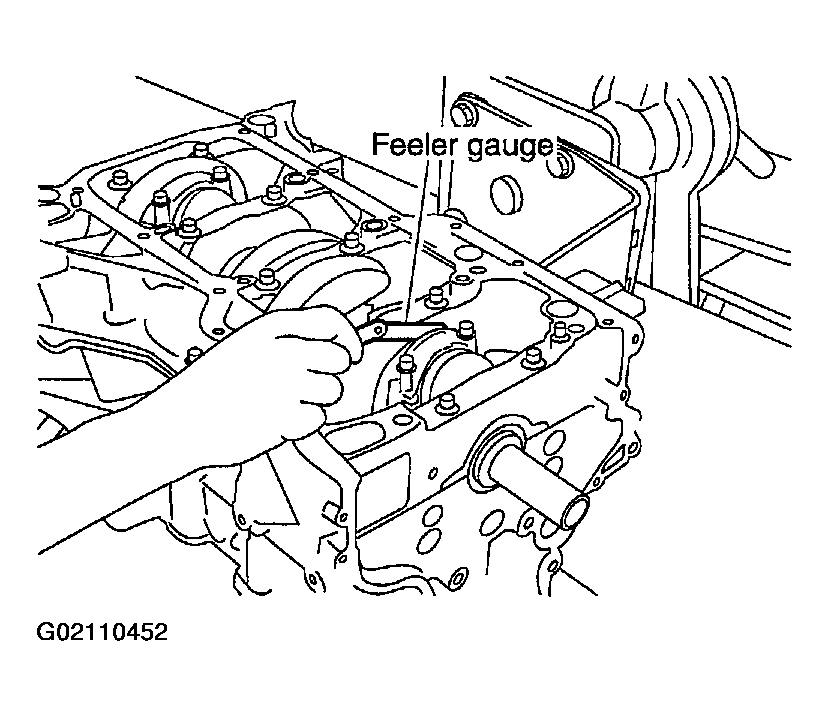

Fig 1: Checking Connecting Rod Side Clearance
Courtesy of NISSAN MOTOR CO., U.S.A.
