Section 412 (Engine Mechanical - 2.5L)
>>
Cylinder Block
>>
Inspection After Disassembly
>>
Connecting Rod Bushing Oil Clearance (Small End)
>>
Outer Diameter of Piston Pin
Outer Diameter of Piston Pin
WARNING:
This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
Measure outer diameter of piston pin.
Standard : 19.989 - 20.001 mm (0.7870 - 0.7874 in)

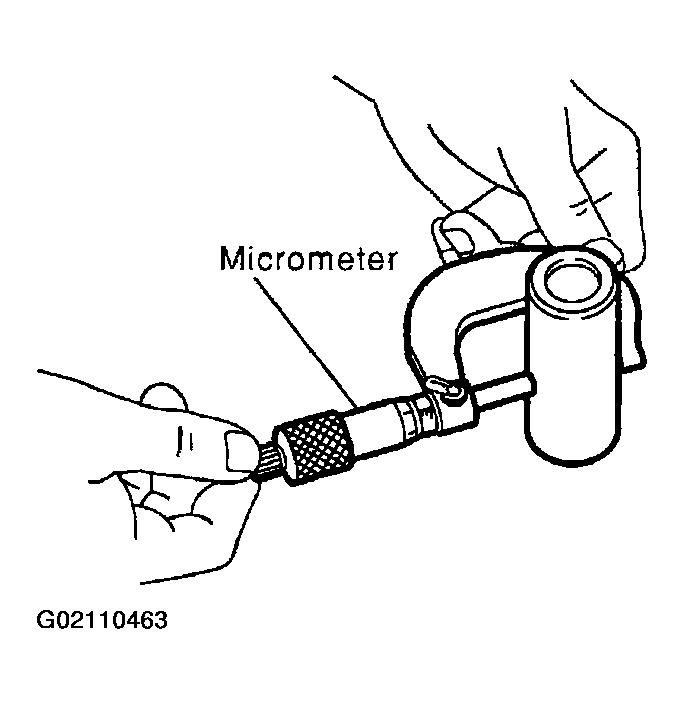

Fig 1: Checking Outer Diameter of Piston Pin
Courtesy of NISSAN MOTOR CO., U.S.A.
