Connecting Rod Bearing (Big End)

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Install the connecting rod cap without the connecting rod bearing installed. After tightening the connecting rod bolt to the specified torque, measure the connecting rod big end inner diameter using an inside micrometer.
1. Standard : 48.000 - 48.013 mm (1.8898 - 1.8903 in)

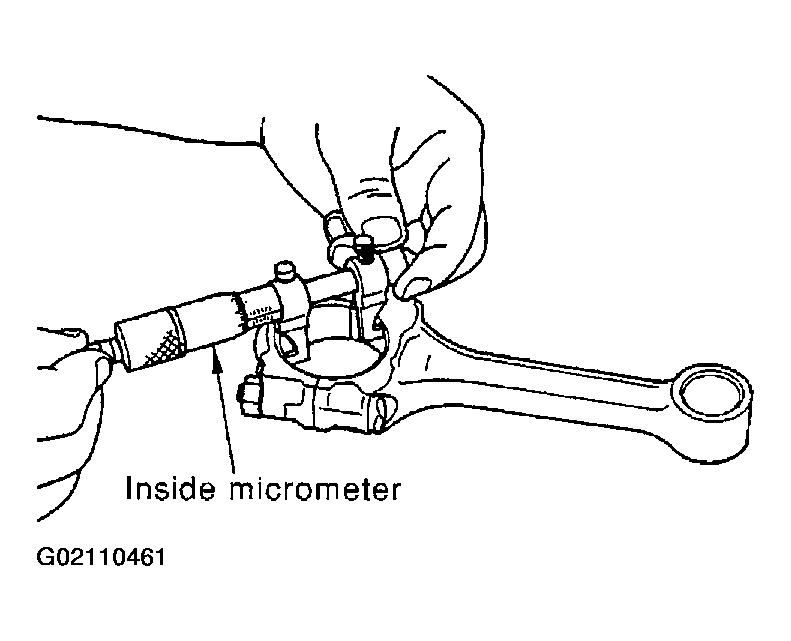

Fig 1: Checking Connecting Rod Bearing (Big End)
Courtesy of NISSAN MOTOR CO., U.S.A.
