Piston Selection Table

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

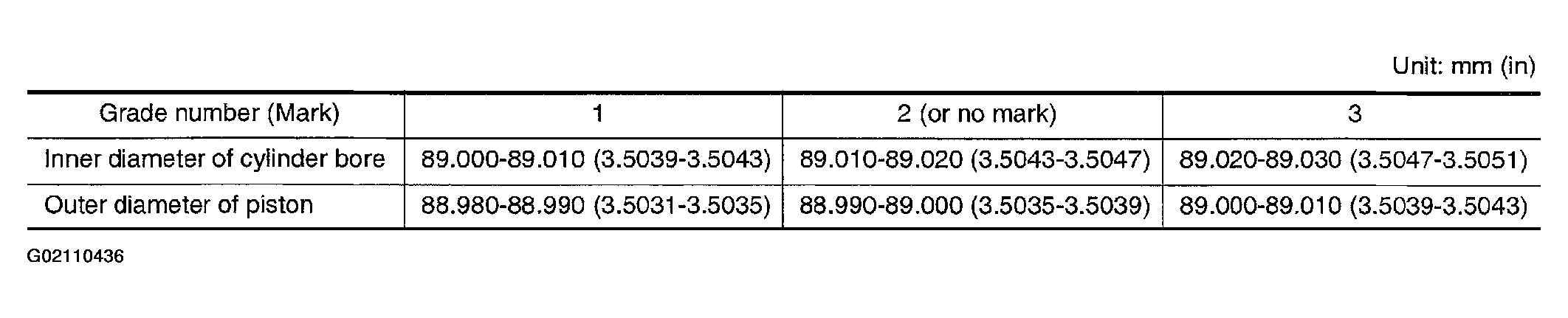

Fig 1: Piston Selection Table
G02110436Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
  • The piston is available together with piston pin as an assembly.
  • The piston pin (piston pin bore) grade is provided only for the parts installed at the plant. For service parts, no grades can be selected. Only 0 grade is available.
