Bearing Undersize Table

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

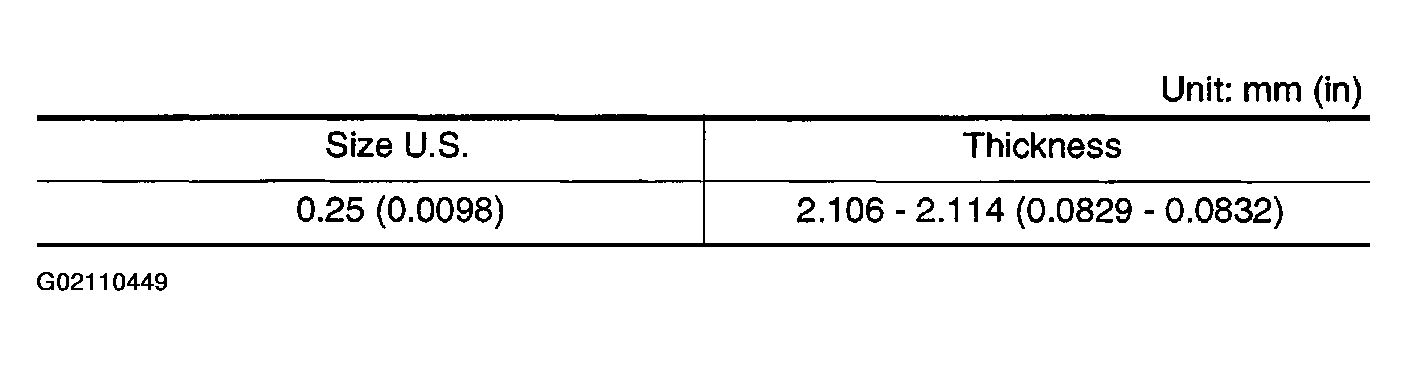

Fig 1: Bearing Undersize Table
G02110449Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION: Do not damage fillet R when grinding crankshaft journal in order to use an undersize bearing (all journals).

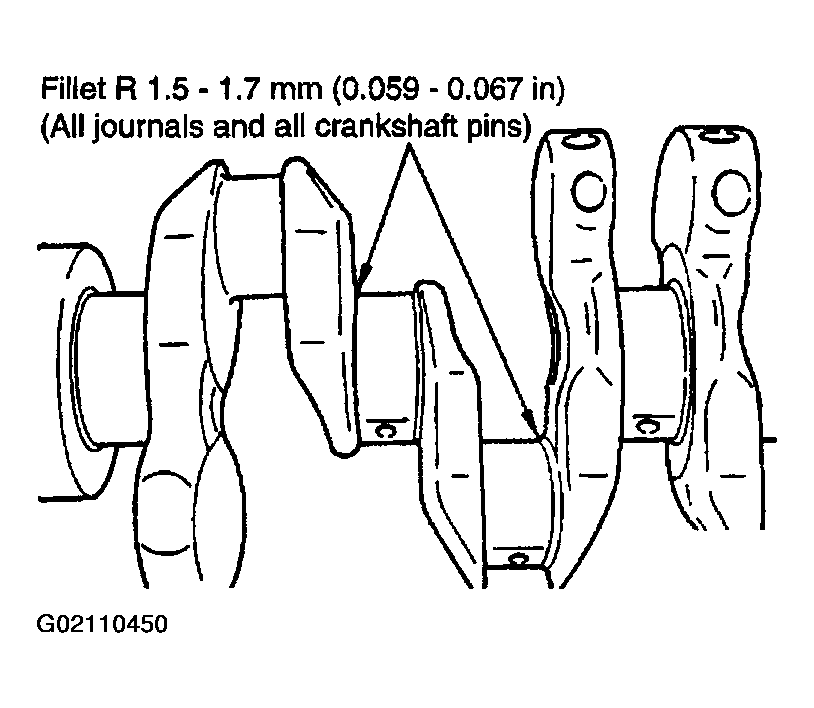

Fig 2: View Of Crankshaft Fillet
G02110450Courtesy of NISSAN MOTOR CO., U.S.A.
